Gear pump

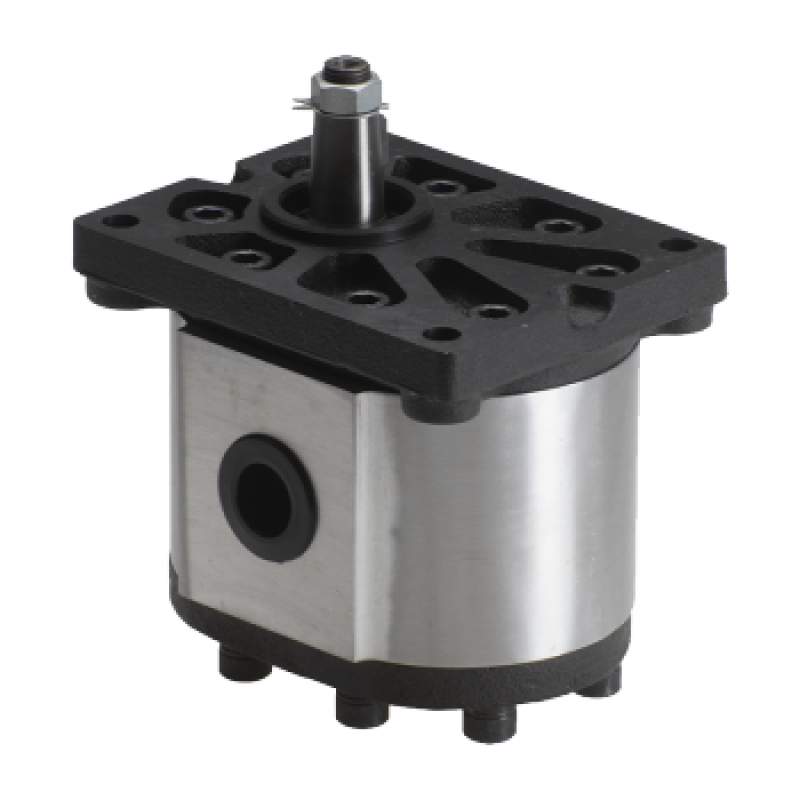

Gear pump BTD3220D01 (22 cm3/rev)

Model: BTD3220D01 · Trale
Displacement (cm³/rev)22
Maximum pressure (bar)200
Port 1 thread3/4" BSP

Description

Gear pump BTD3220D01 (22 cm3/rev). The pump supplies fluid flow to a hydraulic circuit. Select its drive and connection arrangement from the exact model documentation.

Model details: Displacement (cm³/rev): 22.

Model specifications: Maximum pressure (bar): 200.

Technical documentation

Gr.III Gear pump/Eur.flange/Tapered shaft 1:8 /Side ports type threaded. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Gear pump
Maximum pressure (bar) 200
Displacement (cm³/rev) 22
Port 1 thread 3/4" BSP
Port 2 thread 3/4" BSP
Equipment family Gear pumps Group III Right
Original specifications - unverified
Max. pressure, bar 200
Max.Peak pressure 250
Displacement, cm3/rev 22
R1 3/4'' BSP
R2 3/4'' BSP
Group 3
R.P.M. Max 3000
A 130,5
B 63,5
