Gear pump

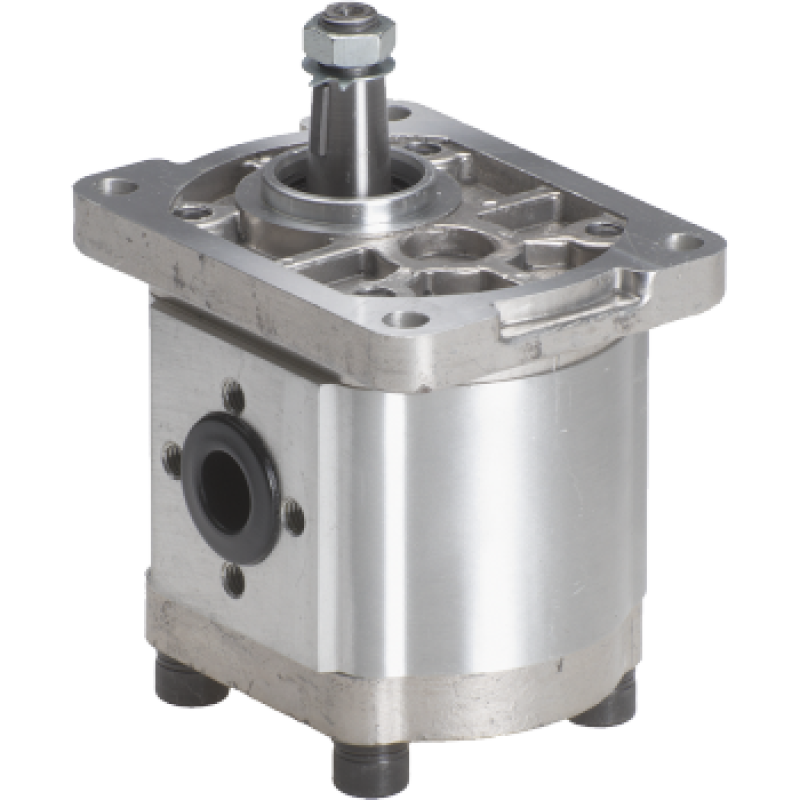

Gear pump BTD2100D02 (10 cm3/rev)

Model: BTD2100D02 · Trale
Displacement (cm³/rev)10
Maximum pressure (bar)250

Description

Gear pump BTD2100D02 (10 cm3/rev). The pump supplies fluid flow to a hydraulic circuit. Select its drive and connection arrangement from the exact model documentation.

Model specifications: Maximum pressure (bar): 250.

Technical documentation

Gr.II Gear pump/Eur.flange/Tapered shaft 1:8 /Side ports type Eur.. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Gear pump
Maximum pressure (bar) 250
Displacement (cm³/rev) 10
Equipment family Gear pumps Group II Right
Catalog inlet flange dimension (mm) 30
Catalog outlet flange dimension (mm) 30
Original specifications - unverified
Max. pressure, bar 250
Max.Peak pressure 300
Displacement, cm3/rev 10
Group 2
R.P.M. Max 3500
ØASPIRATION(mm) 30
ØPRESSURE(mm) 30
A 108
B 49,5
W M6
ØA 30
ØB 30
ØD 20
