Gear pump

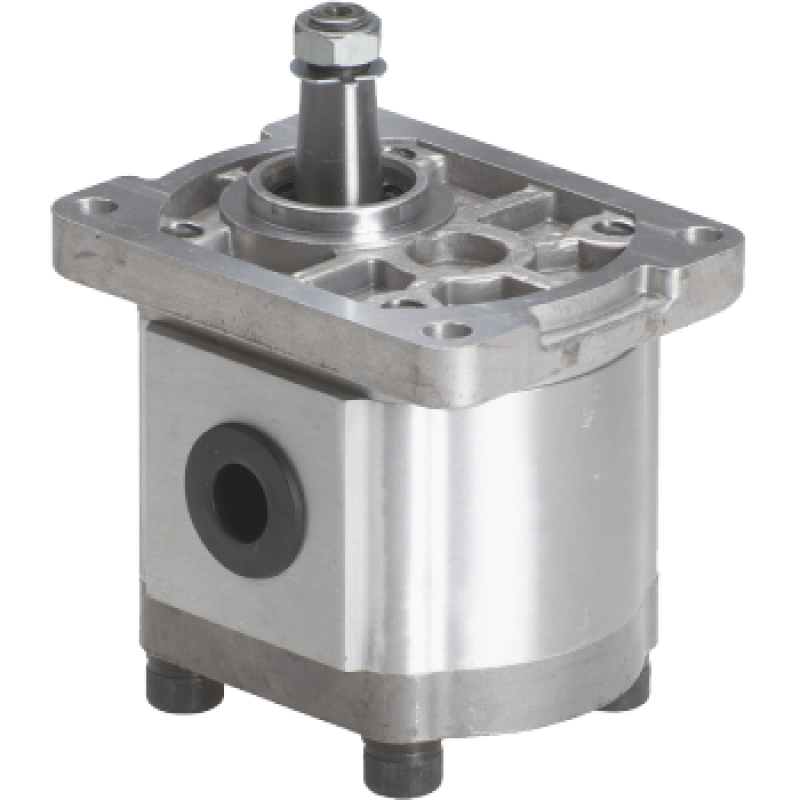

Gear pump BTD2100D01 (10 cm3/rev)

Model: BTD2100D01 · Trale
Displacement (cm³/rev)10
Maximum pressure (bar)250
Port 1 thread1/2" BSP

Description

Gear pump BTD2100D01 (10 cm3/rev). The pump supplies fluid flow to a hydraulic circuit. Select its drive and connection arrangement from the exact model documentation.

Model specifications: Maximum pressure (bar): 250.

Technical documentation

Gr.II Gear pump/Eur.flange/Tapered shaft 1:8 /Threaded Side ports type. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Gear pump
Maximum pressure (bar) 250
Displacement (cm³/rev) 10
Port 1 thread 1/2" BSP
Port 2 thread 1/2" BSP
Equipment family Gear pumps Group II Right
Original specifications - unverified
Max. pressure, bar 250
Max.Peak pressure 300
Displacement, cm3/rev 10
R1 1/2'' BSP
R2 1/2'' BSP
Group 2
R.P.M. Max 3500
A 105
B 48
