Gear pump
Gear pump BTD111D01 (1,1 cm3/rev)
Model: BTD111D01 · Trale
Displacement (cm³/rev)1.1
Maximum pressure (bar)250
Port 1 thread3/8" BSP
Gear pump BTD111D01 (1,1 cm3/rev). The pump supplies fluid flow to a hydraulic circuit. Select its drive and connection arrangement from the exact model documentation.
Model details: Displacement (cm³/rev): 1.1.
Model specifications: Maximum pressure (bar): 250.

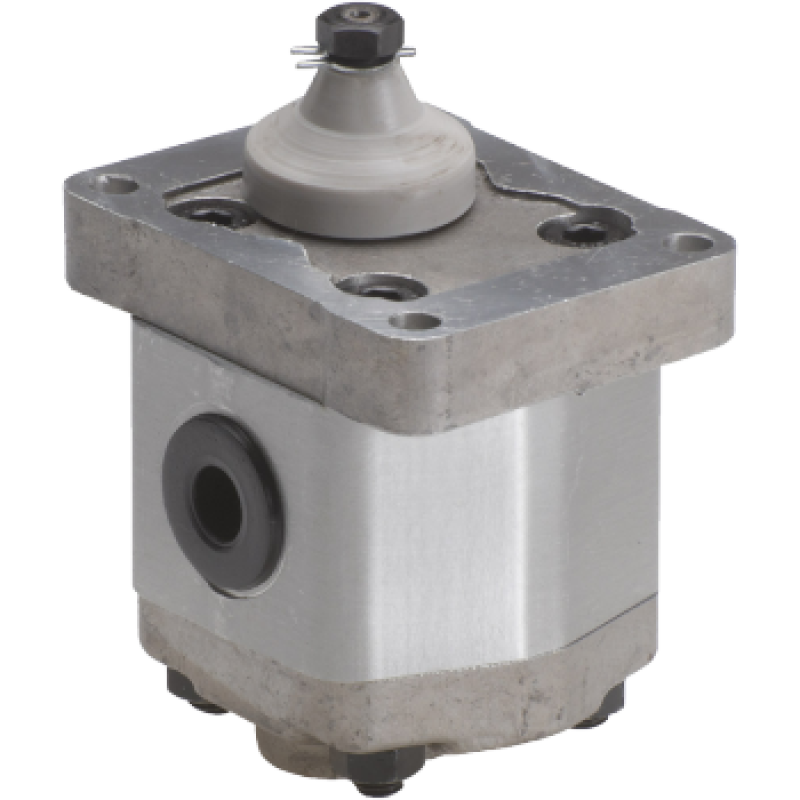

Gr.I Gear pump/ Eur.flange/tapered shaft 1:8 /threaded side ports type. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Gear pump |
| Maximum pressure (bar) | 250 |
| Displacement (cm³/rev) | 1.1 |
| Port 1 thread | 3/8" BSP |
| Port 2 thread | 3/8" BSP |
| Equipment family | Gear pumps Group I Right |
| Original specifications - unverified | |
| Max. pressure, bar | 250 |
| Max.Peak pressure | 300 |
| Displacement, cm3/rev | 1,1 |
| R1 | 3/8'' BSP |
| R2 | 3/8'' BSP |
| Group | 1 |
| R.P.M. | 6000 |
| A | 75 |
| B | 33 |
