Pneumatic cylinder

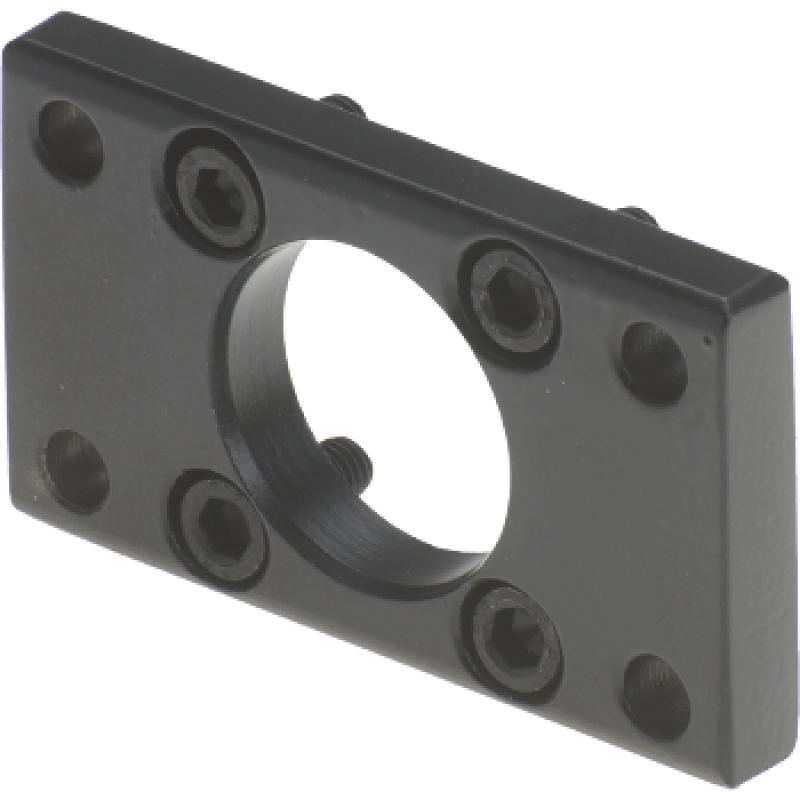

Front or rear flange in zinc-plated steel ISO 15552 BCN050
Model: BCN050
Front or rear flange in zinc-plated steel ISO 15552 BCN050. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.
Front or rear flange in zinc-plated steel ISO 15552. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Pneumatic cylinder |
| Equipment family | Pneumatic accessories ISO 15552 |
| Original specifications - unverified | |
| A | 110 |
| B | 90 |
| C | 46,5 |
| D | 45 |
| E | 65 |
| F | 12 |
| I | 9 |
| K | 13 |
| ØH | 9 |
| ØJ | 40,5 |
