Directional valve

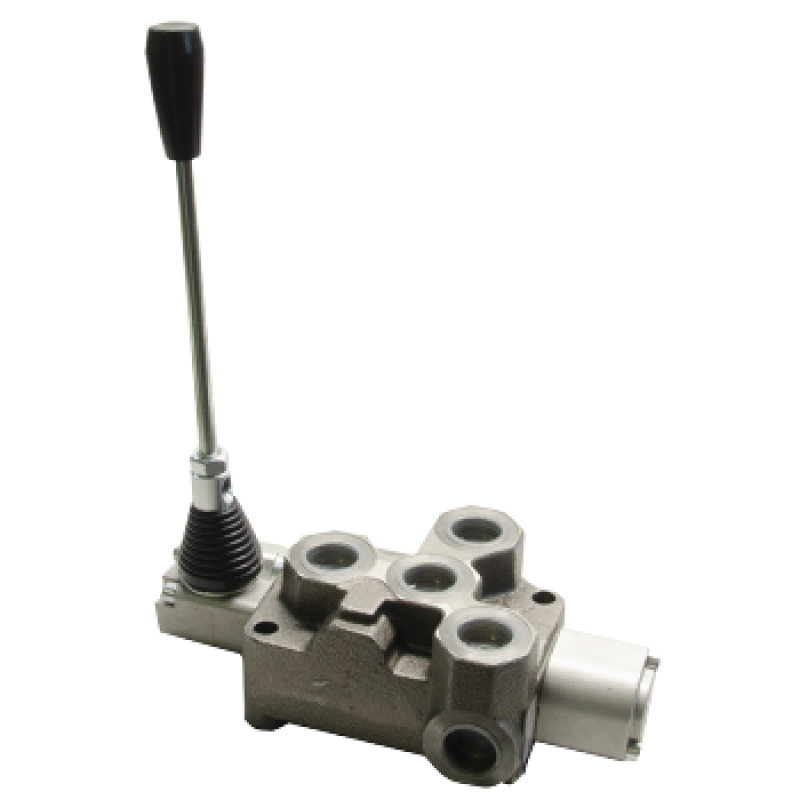

FM85+relief valve. Manual operator, return to center by spring FM85/2 3/4 2P DD
Model: FM85/2 3/4 2P DD
Maximum pressure (bar)320
Port 1 thread3/4'' BSP
FM85+relief valve. Manual operator, return to center by spring FM85/2 3/4 2P DD. The valve routes fluid through the circuit. Match its actuation and port arrangement to the application.
Model specifications: Maximum pressure (bar): 320.
FM85+relief valve. Manual operator, return to center by spring. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Directional valve |
| Maximum pressure (bar) | 320 |
| Port 1 thread | 3/4'' BSP |
| Equipment family | Standard hydraulic control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 320 |
| Flow max, l/min | 100 |
| R1 | 3/4'' BSP |
| Levers | 2 |
| Type | DE - DE |
| I | 105 |
| L | 155 |
