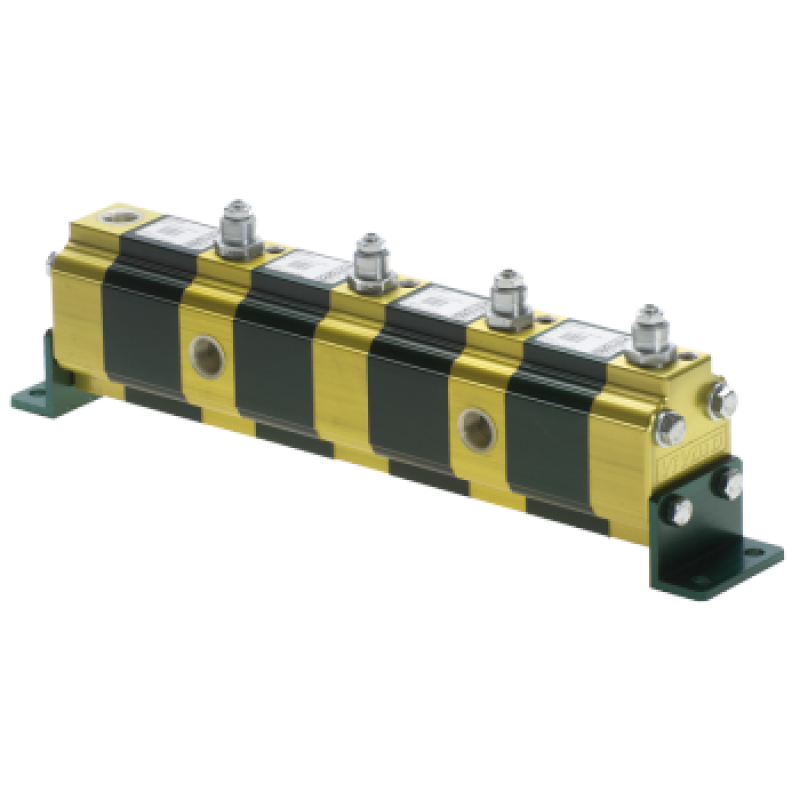

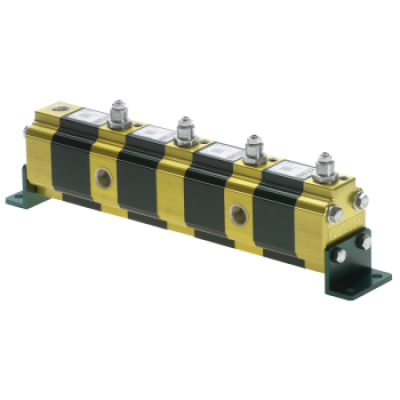

The 9V042702 is a gear flow divider with valves. The following specifications are matched to the exact model row in the official DICSA catalogue.
Verified catalogue specifications
Component type
Gear flow divider with valves
Divider group
1
Minimum catalog flow (L/min)
4.5
Maximum catalog flow (L/min)
23
Maximum pressure (bar)
220
Catalog speed (rpm)
6500
Displacement per body (cm³)
4.3
Number of bodies
4
Technical documentation
technical documentation.
Source notes
Flow limits and speed are reproduced as catalogue table ratings; the table does not state an independent maximum shaft-speed condition or whether flow limits refer to each body or the complete assembly.
Technical documentation publisher: DICSA.
Brand documentation
Brand: Vivoil. Vivoil flow-divider coding catalogue confirms the model coding. The archived series is marked out of production; current availability is not inferred.
Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
