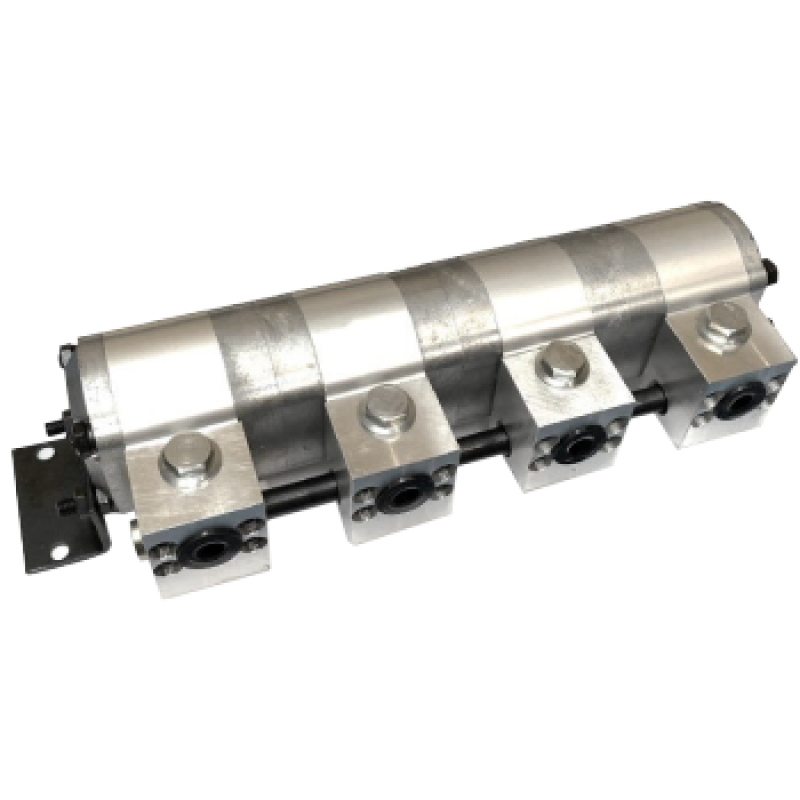

The DE131X4 is a gear flow divider with anti-shock valves. The following specifications are matched to the exact model row in the official DICSA catalogue.
Verified catalogue specifications
Component type
Gear flow divider with anti-shock valves
Minimum catalog flow (L/min)
6.4
Maximum catalog flow (L/min)
13.2
Maximum pressure (bar)
240
Displacement per body (cm³)
3.1
Number of bodies
4
Divider group
1

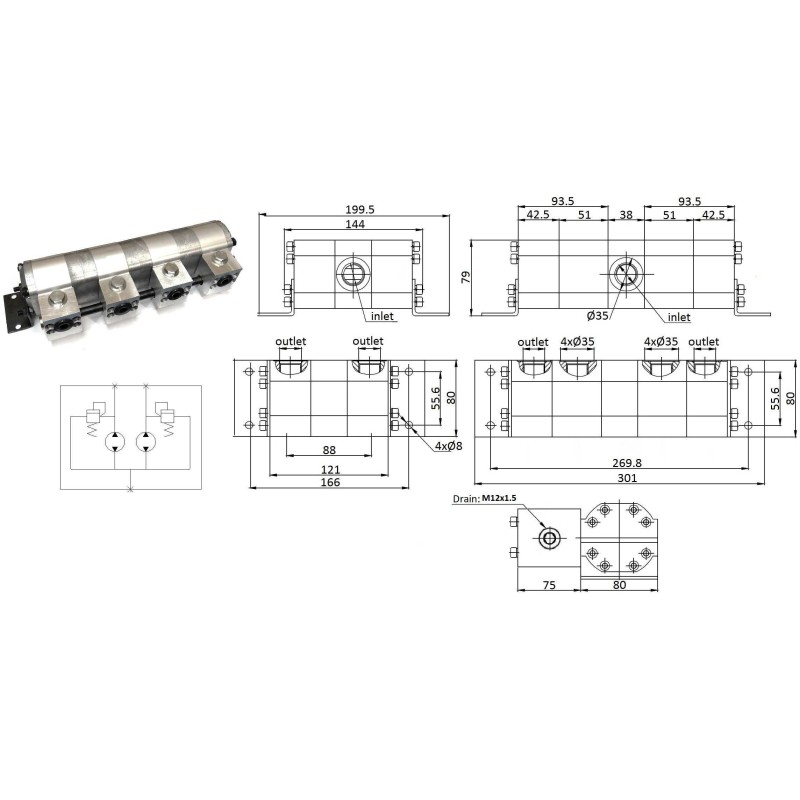

Technical documentation
technical documentation.
Source notes
The catalogue table does not specify whether flow limits refer to each body or the complete assembly.
Technical documentation publisher: DICSA.
Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
