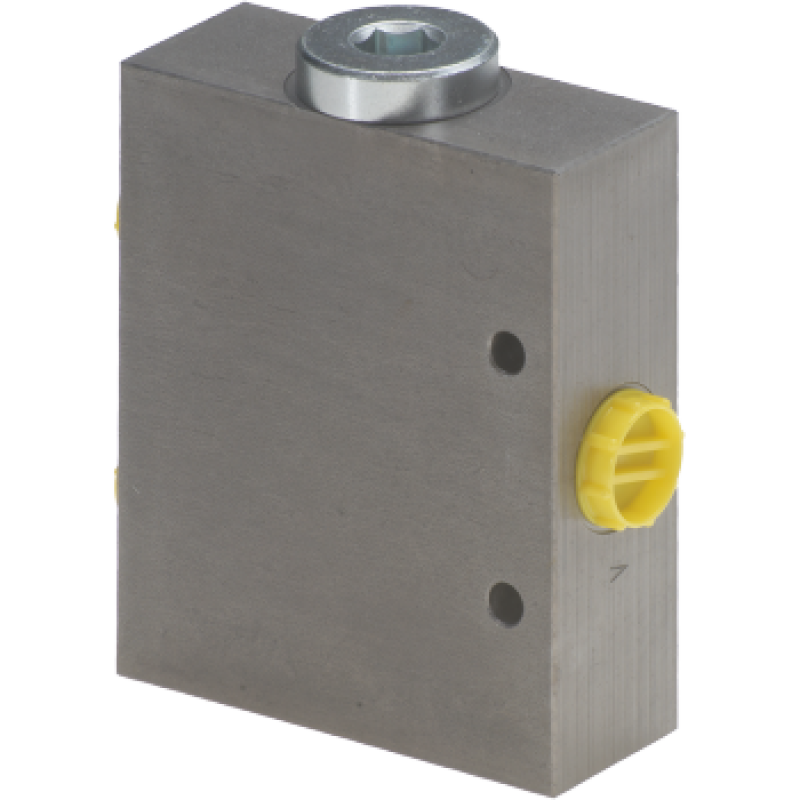

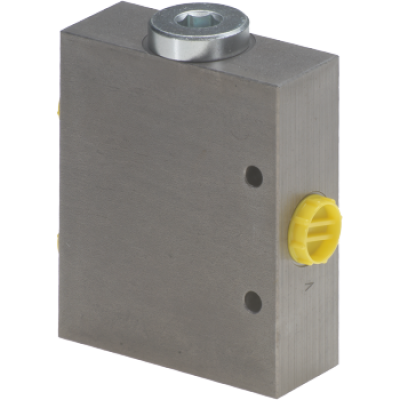

Flow divider DTP-6-35-G3/8
Click image to enlarge
Spring-operated flow divider

Flow divider DTP-6-35-G3/8
Model: DTP-6-35-G3/8
  • Model:
    DTP-6-35-G3/8
Maximum pressure (bar)350
Minimum catalog flow (L/min)12
Port thread3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The DTP-6-35-G3/8 is a spring-operated flow divider. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Spring-operated flow divider
Port thread
3/8" BSP
Minimum catalog flow (L/min)
12
Maximum catalog flow (L/min)
35
Maximum pressure (bar)
350
Filtration rating (µm)
8
Flow division ratio
50%

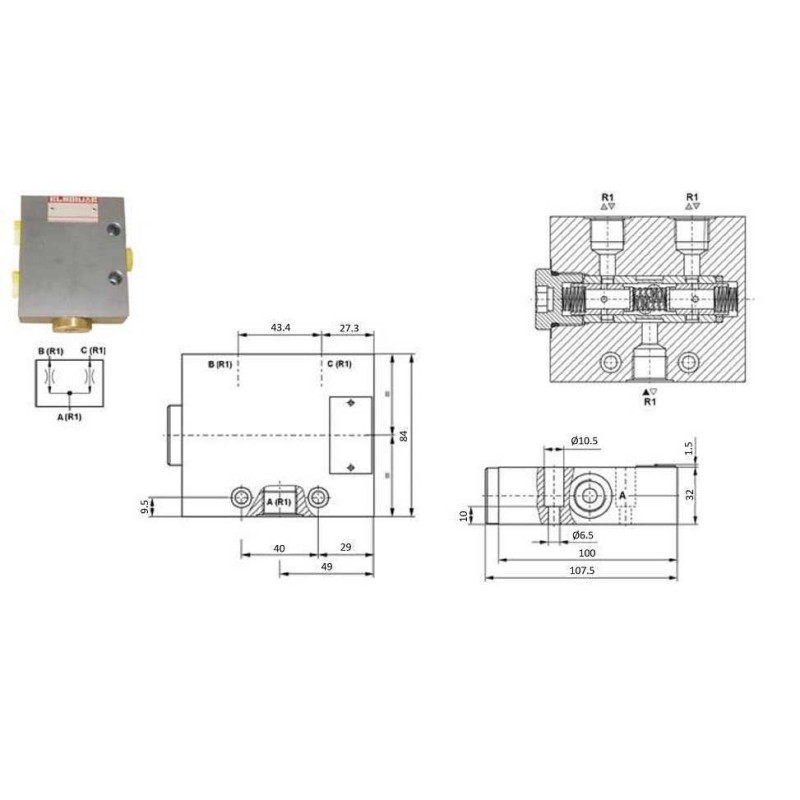

Technical documentation

technical documentation.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Spring-operated flow divider
Maximum pressure (bar) 350
Minimum catalog flow (L/min) 12
Maximum catalog flow (L/min) 35
Flow division ratio 50%
Port thread 3/8" BSP
Filtration rating (µm) 8
