Flow control valve over motor MOMP/MOMR/MOMH type FPRF90DVD2R1/2
Click image to enlarge

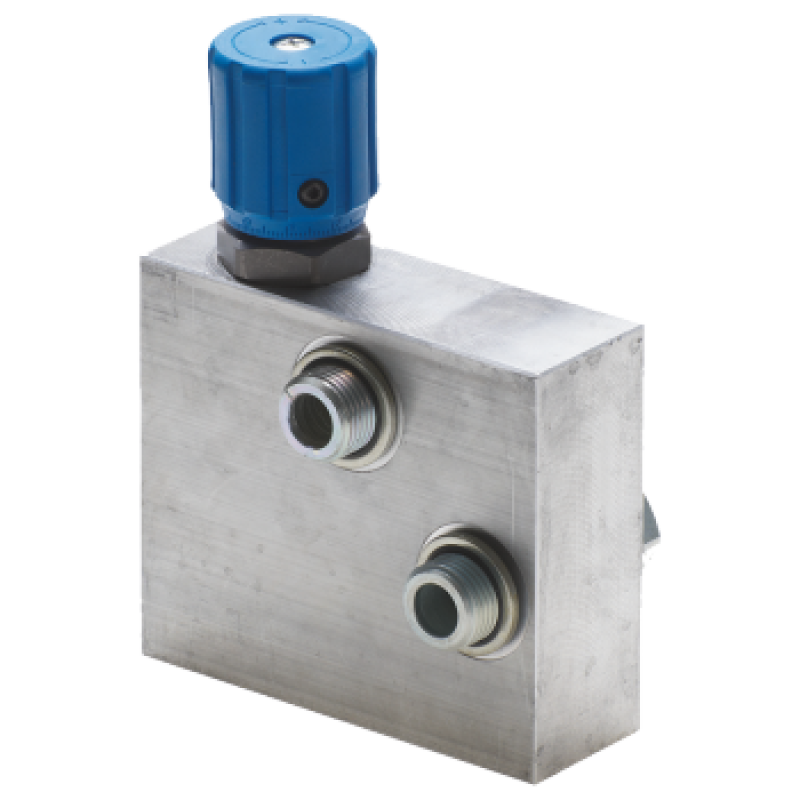

Flow control valve over motor MOMP/MOMR/MOMH type FPRF90DVD2R1/2
Model: FPRF90DVD2R1/2
  • Model:
    FPRF90DVD2R1/2
Maximum pressure (bar)250
Maximum flow (L/min)90
Valve functionMotor-mounted flow control valve for MOMP/MOMR/MOMH
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPRF90DVD2R1/2 is a motor-mounted flow control valve for momp/momr/momh. The official exact-model entry lists maximum flow 90 L/min, maximum pressure 250 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Flow control valve over motor MOMP/MOMR/MOMH type. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 90
Port connection 1/2" BSP
Valve function Motor-mounted flow control valve for MOMP/MOMR/MOMH
