Pneumatic cylinder

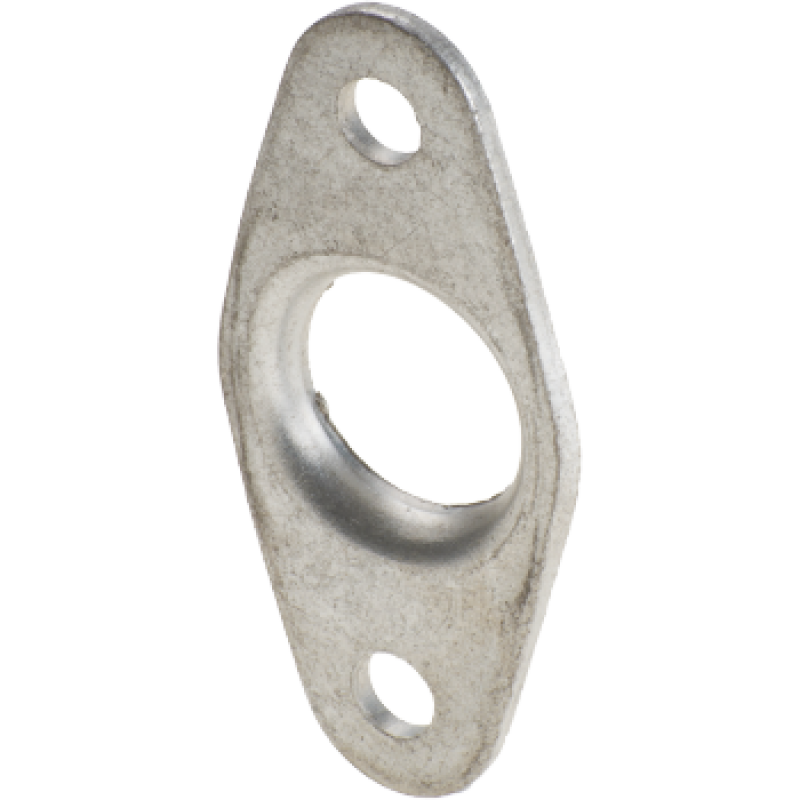

Flange mounting for micro-cylinders BMCN12

Model: BMCN12

Description

Flange mounting for micro-cylinders BMCN12. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.

Technical documentation

Flange mounting for micro-cylinders. The exact model is listed on page 1.

Full specifications

Technical specifications
Component type Pneumatic cylinder
Equipment family Micro-cylinders accessories
Original specifications - unverified
A 4
B 38
C 50
D 17
E 52
F 30
G 40
ØH 5,5
