Filter

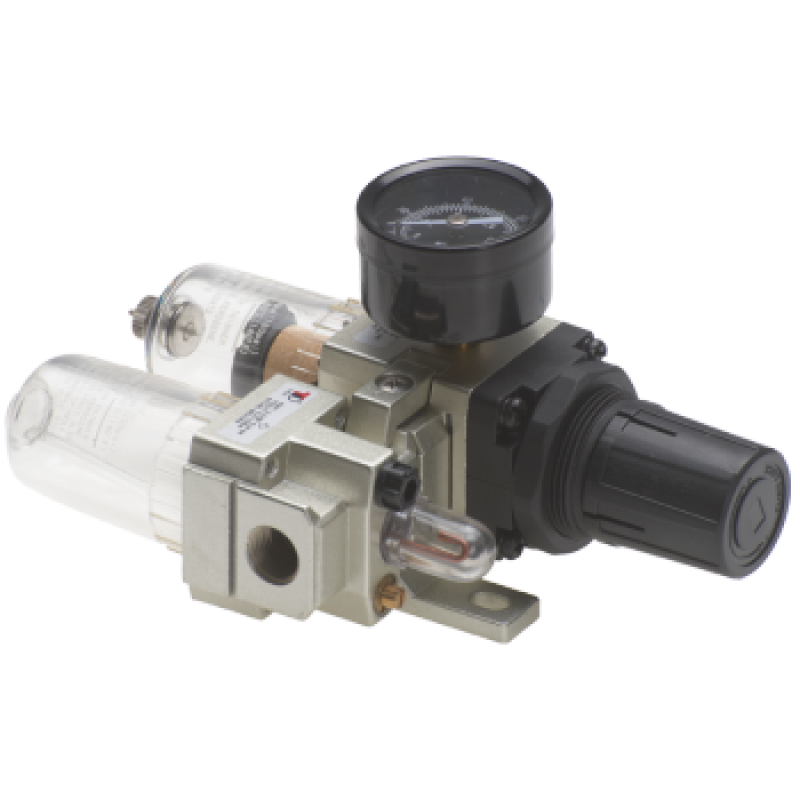

Filter-pressure reducer + compact lubricant FR+L 1 M
Model: FR+L 1 M
Maximum pressure (bar)10
Flow max, l/min4000
Port 1 thread1" BSP
Filter-pressure reducer + compact lubricant FR+L 1 M. This filtration component supports fluid cleanliness in the stated installation. Check the exact element and housing arrangement.
This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.
Local technical documentation: verification pending.
| Technical specifications | |
| Component type | Filter |
| Maximum pressure (bar) | 10 |
| Port 1 thread | 1" BSP |
| Documentation status | Exact primary-card model confirmed |
| Equipment family | Filters |
| Original specifications - unverified | |
| Max. pressure, bar | 10 |
| Flow max, l/min | 4000 |
| R1 | 1'' BSP |
| A | 195 |
| B | 338 |
| C | 116 |
| D | 90 |
| E | 75,5 |
| F | 69,8 |
| G | 97,5 |
| H | 50 |
| L | 10,5 |
| N | 40 |
| P | 115 |
