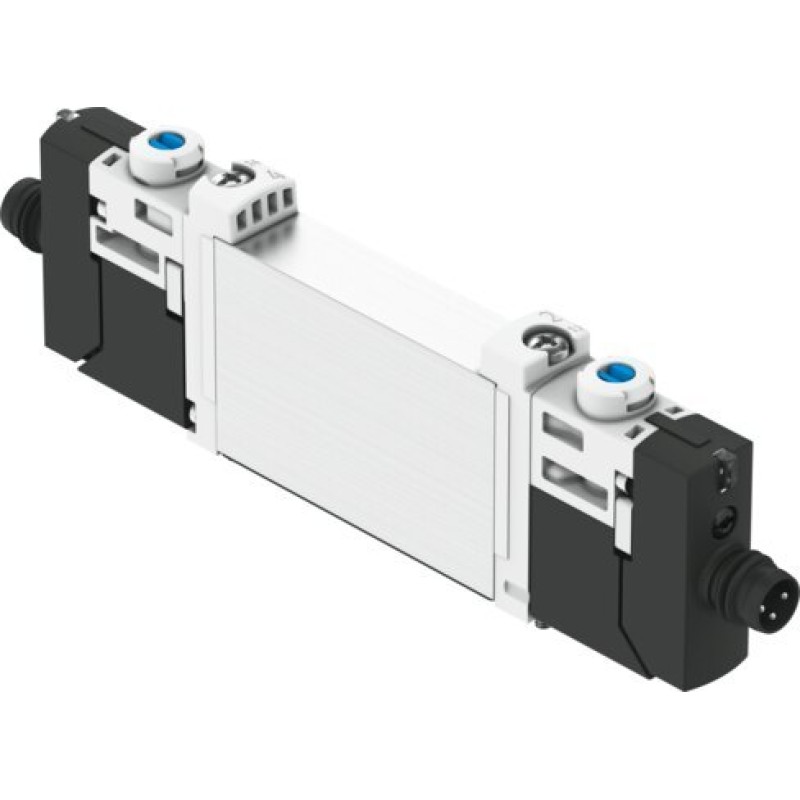

Festo VUVG-B10-P53C-ZT-F-1R8L pneumatic solenoid valve
Click image to enlarge

Festo VUVG-B10-P53C-ZT-F-1R8L pneumatic solenoid valve
Model: VUVG-B10-P53C-ZT-F-1R8L · Festo
  • Manufacturer:
    Festo
  • Model:
    VUVG-B10-P53C-ZT-F-1R8L
Maximum operating pressure (bar)10
Valve configuration5/3-way, closed
Control typePiloted
Supply voltage24V DC
Valve size (mm)10
Ambient temperature range (°C)-5 °C...60 °C
Full specifications ↓ Technical catalog · PDF

Description

VUVG-B10-P53C-ZT-F-1R8L is a Festo VUVG pneumatic directional valve with electrical actuation. Its valve function is 5/3-way, closed. The factory datasheet specifies 24V DC supply and standard nominal air flow.

The factory part number is 574239. Select this complete standard execution by its part number; dimensions, operating conditions and installation details are provided in the technical data. Illustration: manufacturer series photograph; configuration and dimensions may vary.

Full specifications

Technical specifications
Valve configuration 5/3-way, closed
Maximum operating pressure (bar) 10
Minimum operating pressure (bar) -0.9
Valve size (mm) 10
Supply voltage 24V DC
Control type Piloted
Ambient temperature range (°C) -5 °C...60 °C
Construction Piston gate valve
Housing material Wrought aluminum alloy
IP rating IP65; With plug socket
Manufacturer Festo
Manufacturer part number 574239
Nominal bore (mm) 4
Pilot air supply External
Pilot pressure maximum (bar) 8
Pilot pressure minimum (bar) 3
Return mechanism Mechanical spring
Technical specifications
Actuation Electrical
Technical specifications
Port thread Flange
