QS-4 is a straight Festo QS push-in connector for pneumatic tubing. The two connections are specified as for pneumatic tubing outside diameter 4 mm and for pneumatic tubing outside diameter 4 mm. Its operating-pressure limits depend on temperature; full-temperature and temperature-dependent limits are recorded separately.

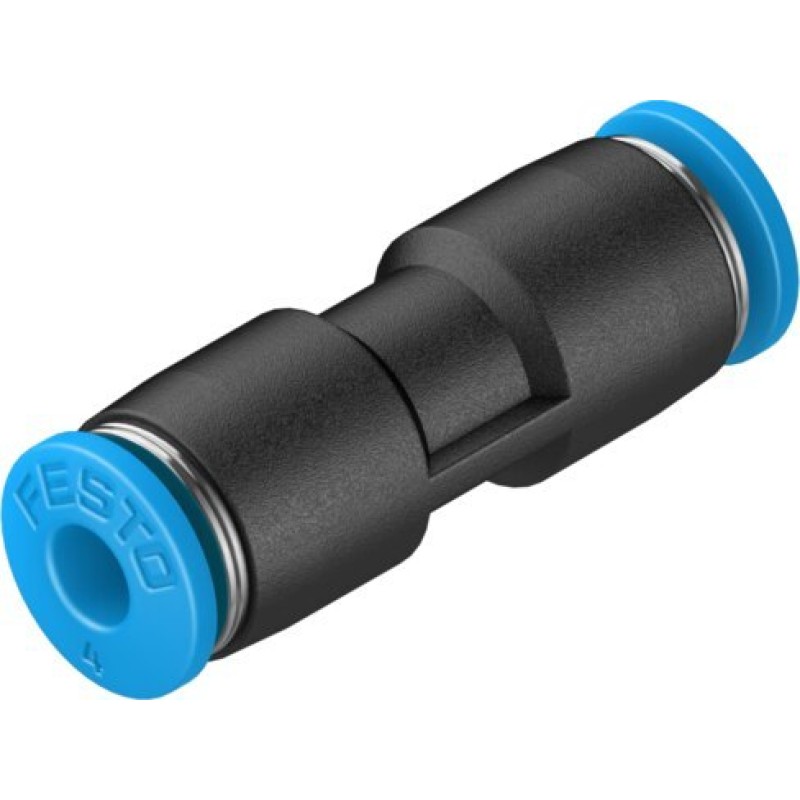

The factory part number is 153031. Select this complete standard execution by its part number; dimensions, operating conditions and installation details are provided in the technical data. Illustration: manufacturer series photograph; configuration and dimensions may vary.
Full specifications
Technical specifications
Operating pressure at full temperature range maximum (bar)
6
Operating pressure at full temperature range minimum (bar)
-0.95
Temperature-dependent operating pressure maximum (bar)
