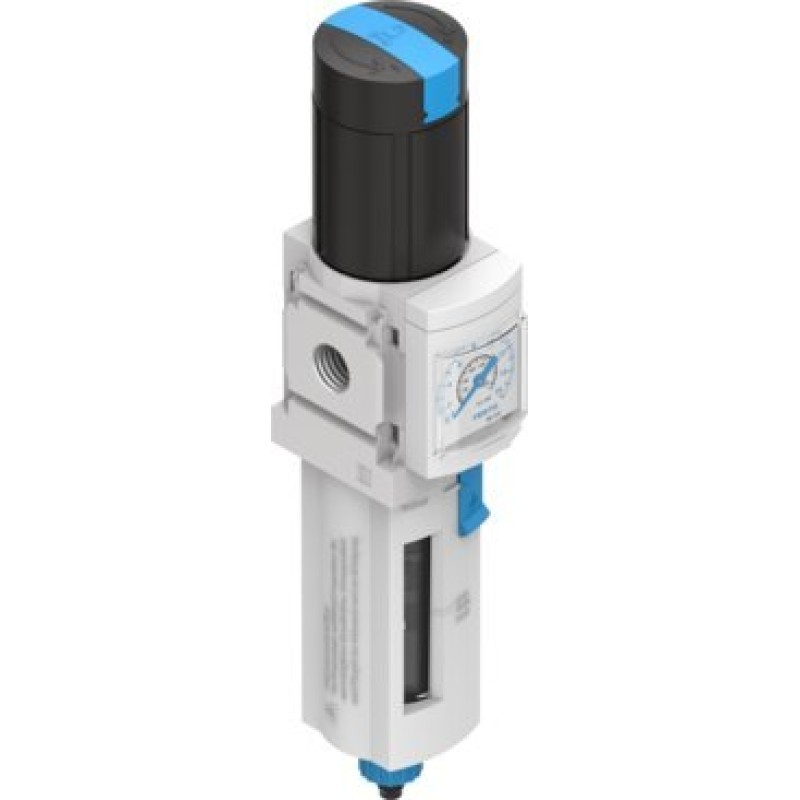

Festo MS4-LFR-1/4-D7-ERV-AS filter regulator
Click image to enlarge

Festo MS4-LFR-1/4-D7-ERV-AS filter regulator
Model: MS4-LFR-1/4-D7-ERV-AS · Festo
  • Manufacturer:
    Festo
  • Model:
    MS4-LFR-1/4-D7-ERV-AS
Maximum operating pressure (bar)12
Standard nominal air flow (l/min)1500
Connection 11/4" BSP
Housing materialDie-cast aluminum
Ambient temperature range (°C)-10 °C...60 °C
Full specifications ↓ Technical catalog · PDF

Description

MS4-LFR-1/4-D7-ERV-AS is a Festo MS4 combined compressed-air filter and pressure regulator with 40 µm filtration. The specified condensate drain is fully automatic; manual, non-detenting. It is supplied with a pressure gauge. The inlet operating-pressure envelope and outlet regulation range are different quantities and are listed separately.

The factory part number is 529158. Select this complete standard execution by its part number; dimensions, operating conditions and installation details are provided in the technical data. Illustration: manufacturer series photograph; configuration and dimensions may vary.

Full specifications

Technical specifications
Maximum operating pressure (bar) 12
Maximum pressure hysteresis (bar) 0.25
Minimum operating pressure (bar) 2
Pressure gauge with pressure gauge
Pressure regulation maximum (bar) 12
Pressure regulation minimum (bar) 0.5
Standard nominal air flow (l/min) 1500
Ambient temperature range (°C) -10 °C...60 °C
Construction Filter regulator with pressure gauge
Housing material Die-cast aluminum
Series MS
Condensate drain Fully automatic; Manual, non-detenting
Connection 1 1/4" BSP
Connection 2 1/4" BSP
Manufacturer Festo
Manufacturer part number 529158
Technical specifications
Filtration rating (µm) 40
Technical data
Size 4
