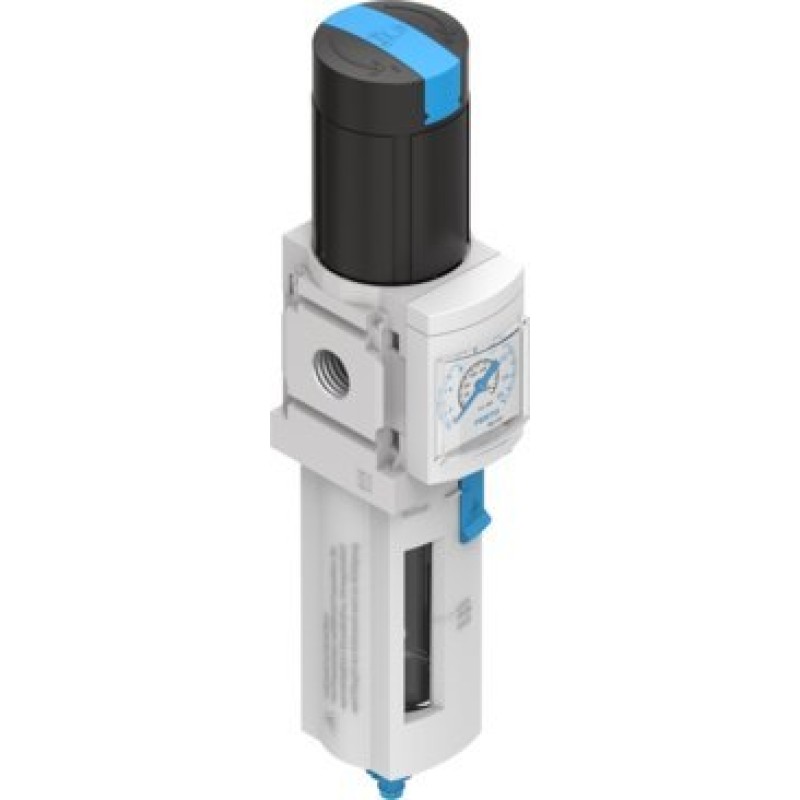

Festo MS4-LFR-1/4-D7-ERM-AS filter regulator
Click image to enlarge

Festo MS4-LFR-1/4-D7-ERM-AS filter regulator
Model: MS4-LFR-1/4-D7-ERM-AS · Festo
  • Manufacturer:
    Festo
  • Model:
    MS4-LFR-1/4-D7-ERM-AS
Maximum operating pressure (bar)14
Standard nominal air flow (l/min)1500
Connection 11/4" BSP
Housing materialDie-cast aluminum
Ambient temperature range (°C)-10 °C...60 °C
Full specifications ↓ Technical catalog · PDF

Description

MS4-LFR-1/4-D7-ERM-AS is a Festo MS4 combined compressed-air filter and pressure regulator with 40 µm filtration. The specified condensate drain is manual, rotating. It is supplied with a pressure gauge. The inlet operating-pressure envelope and outlet regulation range are different quantities and are listed separately.

The factory part number is 529156. Select this complete standard execution by its part number; dimensions, operating conditions and installation details are provided in the technical data. Illustration: manufacturer series photograph; configuration and dimensions may vary.

Full specifications

Technical specifications
Maximum operating pressure (bar) 14
Maximum pressure hysteresis (bar) 0.25
Minimum operating pressure (bar) 0.8
Pressure gauge with pressure gauge
Pressure regulation maximum (bar) 12
Pressure regulation minimum (bar) 0.5
Standard nominal air flow (l/min) 1500
Ambient temperature range (°C) -10 °C...60 °C
Construction Filter regulator with pressure gauge
Housing material Die-cast aluminum
Series MS
Condensate drain Manual, rotating
Connection 1 1/4" BSP
Connection 2 1/4" BSP
Manufacturer Festo
Manufacturer part number 529156
Technical specifications
Filtration rating (µm) 40
Technical data
Size 4
