Festo DSBC-32-100-PPVA-N3 ISO 15552 pneumatic cylinder
Click image to enlarge

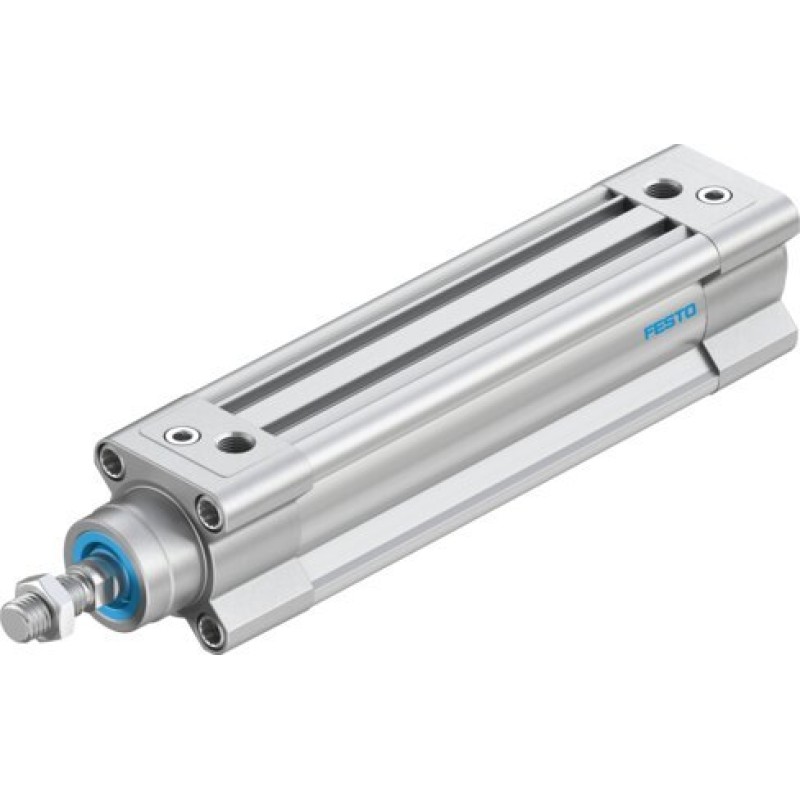

Festo DSBC-32-100-PPVA-N3 ISO 15552 pneumatic cylinder
Model: DSBC-32-100-PPVA-N3 · Festo
  • Manufacturer:
    Festo
  • Model:
    DSBC-32-100-PPVA-N3
Maximum operating pressure (bar)12
Stroke (mm)100
Bore diameter (mm)32
ActionDouble-acting
Piston rod threadM10x1.25
Ambient temperature range (°C)-20 °C...80 °C
Full specifications ↓ Technical catalog · PDF

Description

DSBC-32-100-PPVA-N3 is a double-acting Festo pneumatic cylinder with a 32 mm bore and 100 mm stroke. It conforms to ISO 15552 and provides piston-position sensing for proximity switches. Pneumatic cushioning is adjustable at both ends.

The factory part number is 1376426. Select this complete standard execution by its part number; dimensions, operating conditions and installation details are provided in the technical data. Illustration: manufacturer series photograph; configuration and dimensions may vary.

Full specifications

Technical specifications
Action Double-acting
Technical specifications
Maximum operating pressure (bar) 12
Minimum operating pressure (bar) 0.6
Stroke (mm) 100
Bore diameter (mm) 32
Piston rod thread M10x1.25
Ambient temperature range (°C) -20 °C...80 °C
Construction Piston; Piston rod; Profile barrel
Cushioning Pneumatic cushioning, adjustable at both ends
Cylinder standard ISO 15552
Manufacturer Festo
Manufacturer part number 1376426
Position sensing Via proximity switch
