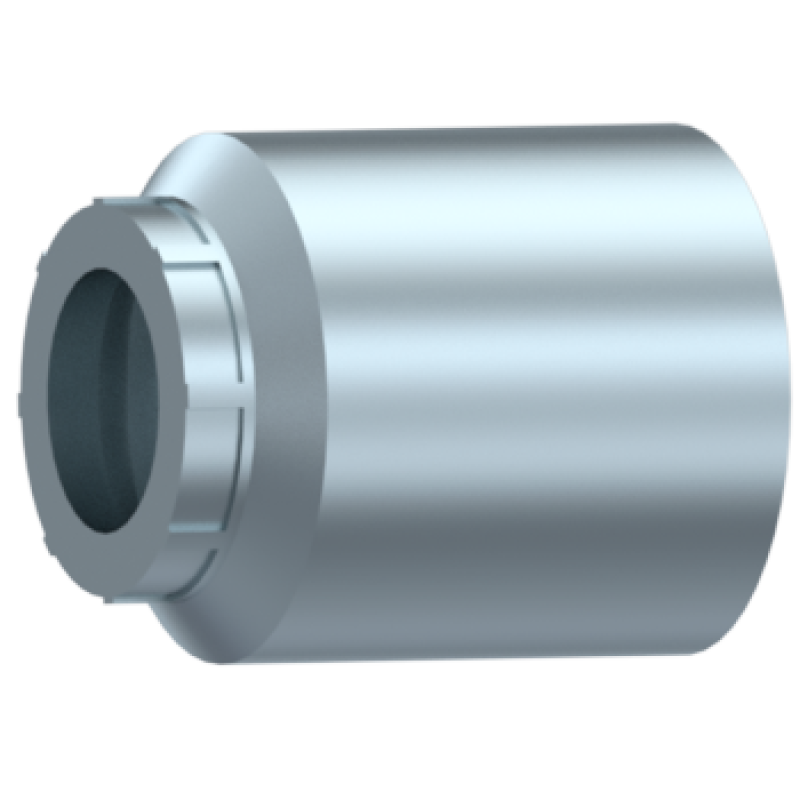

Ferrules R12/4SP/4SH BW series AC680101200
Model: AC680101200
Ferrules R12/4SP/4SH BW series AC680101200. This fitting connects the stated fluid-line components. Match each mating connection and sealing interface.
BW series crimp ferrules for R12 4SP and 4SH hoses. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Hose fitting |
| Connection family | Ferrules BW/BW+ series |
| Original specifications - unverified | |
| DN | 3/4'' |
| L | 50 |
| L1 | 44,5 |
| ØA | 42 |
| ØC | 25,2 |
| ØD | 36,3 |
| ØE | 33 |
