Pneumatic cylinder

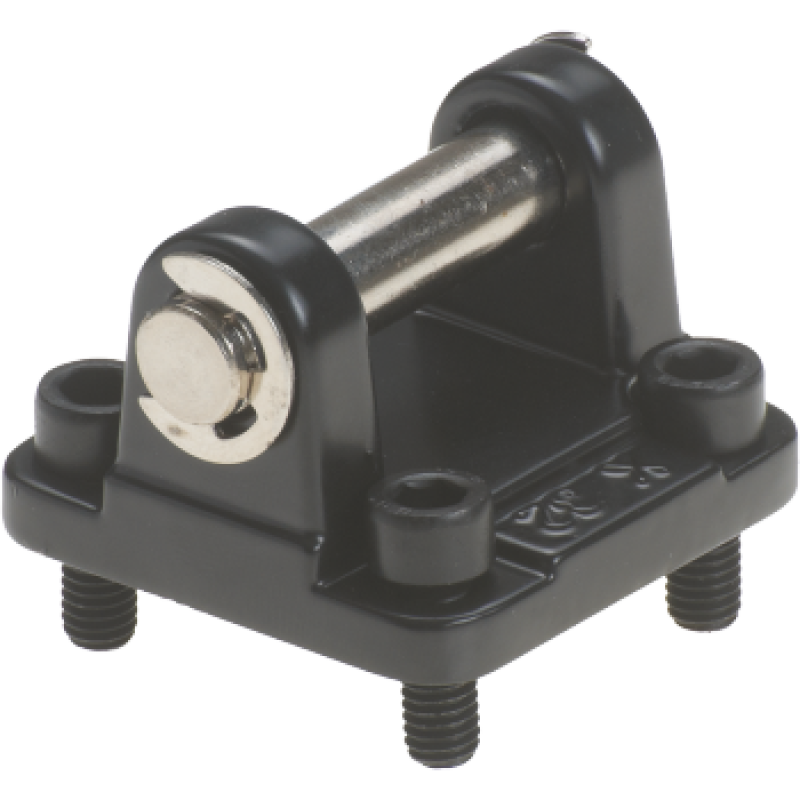

Female pivot in steel ISO 15552 CHCN032
Model: CHCN032
Female pivot in steel ISO 15552 CHCN032. This accessory supports the cylinder installation identified by its source family. Check the exact mating components before selection.
Female pivot in steel ISO 15552. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Pneumatic cylinder |
| Equipment family | Pneumatic accessories ISO 15552 |
| Original specifications - unverified | |
| Screw | M6x20 |
| A | 47 |
| B | 45 |
| C | 32,5 |
| D | 26 |
| E | 22 |
| F | 13 |
| G | 9 |
| I | 51 |
| J | 45,5 |
| ØH | 10 |
