Hose

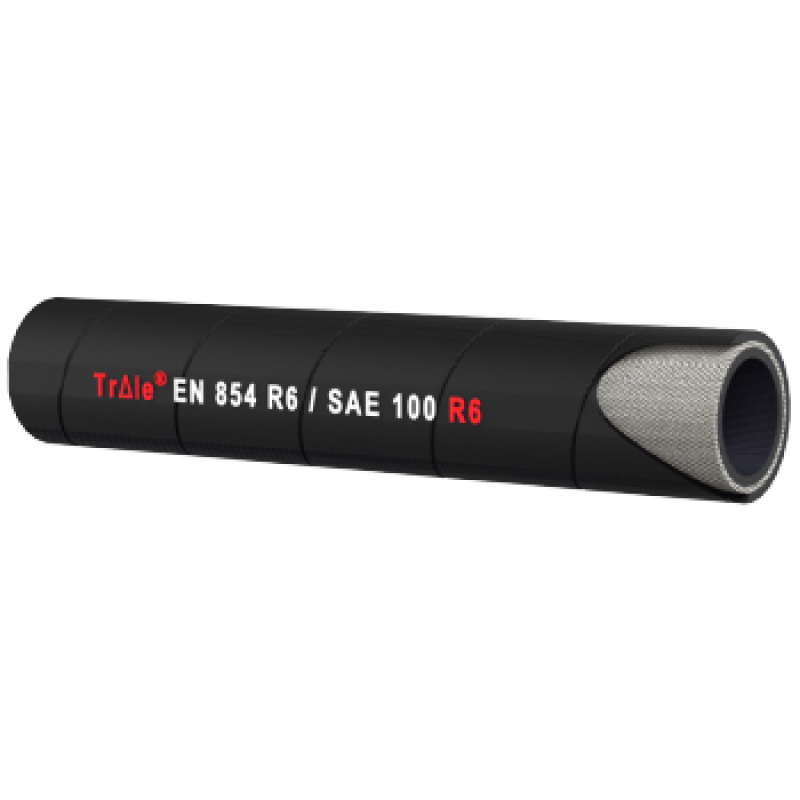

EN 854 1TE / SAE 100 R6 Hose MSB2110
Model: MSB2110
EN 854 1TE / SAE 100 R6 Hose MSB2110. This component belongs to the stated hose family. Check the exact hose construction and connection arrangement.
| Technical specifications | |
| Component type | Hose |
| Connection family | TrAle Textile braid |
| Original specifications - unverified | |
| Burst pressure, bar | 96 |
| Burst pressure, psi | 1.392 |
| Working pressure, bar | 24 |
| Working pressure, psi | 348 |
| DN | 5/8'' |
| Øin | 16,2 |
| Øout | 23 |
| Bending radius, mm | 125 |
| Weight, kg/m | 0,5 |
