Check valve

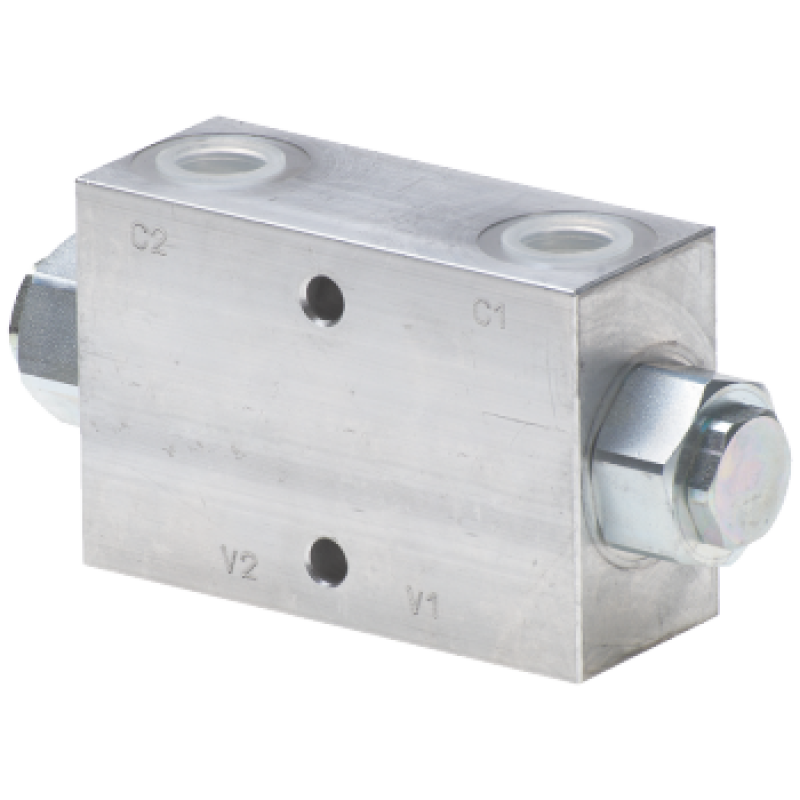

Double pilot operated check valve VT003006
Model: VT003006
Maximum pressure (bar)250
Port 1 thread3/8" BSP
Double pilot operated check valve VT003006. The valve controls reverse flow through the stated connection arrangement.
Model specifications: Maximum pressure (bar): 250.
Double pilot operated check valve. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Check valve |
| Maximum pressure (bar) | 250 |
| Port 1 thread | 3/8" BSP |
| Equipment family | Check valves |
| Original specifications - unverified | |
| Max. pressure, bar | 250 |
| Flow max, l/min | 30 |
| R1 | 3/8'' BSP |
| Pilotratio | 1 : 7 |
| A | 127 |
| B | 90 |
| D | 18,5 |
| E | 32 |
| F | 29 |
| G | 62 |
| H | 14 |
| I | 40 |
| M | 35 |
| N | 60 |
| ØN | 6,5 |
