Check valve

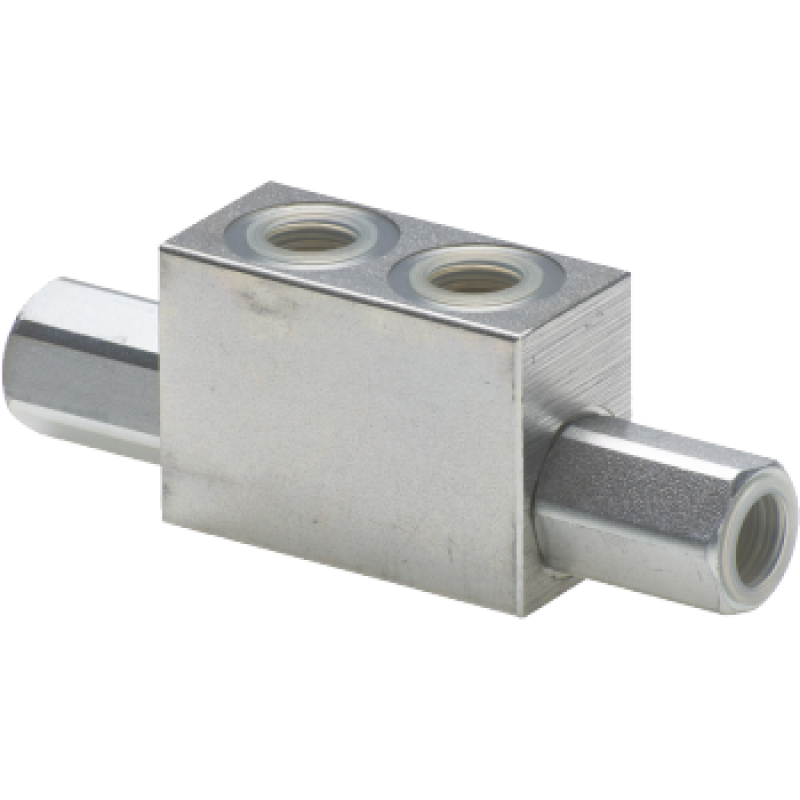

Double pilot operated check valve in block (in T) VT008004
Model: VT008004
Maximum pressure (bar)350
Port 1 thread1/4" BSP
Double pilot operated check valve in block (in T) VT008004. The valve controls reverse flow through the stated connection arrangement.
Model specifications: Maximum pressure (bar): 350.
Double pilot operated check valve in block (in T). The exact model is listed on page 1.
| Technical specifications | |
| Component type | Check valve |
| Maximum pressure (bar) | 350 |
| Port 1 thread | 1/4" BSP |
| Equipment family | Check valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 12 |
| R1 | 1/4'' BSP |
| Pilotratio | 1 : 4 |
| A | 126 |
| B | 63,6 |
| D | 29 |
| E | 51,6 |
| F | 9 |
| H | 30 |
| I | 45 |
| L | 15 |
| ØG | 6,5 |
