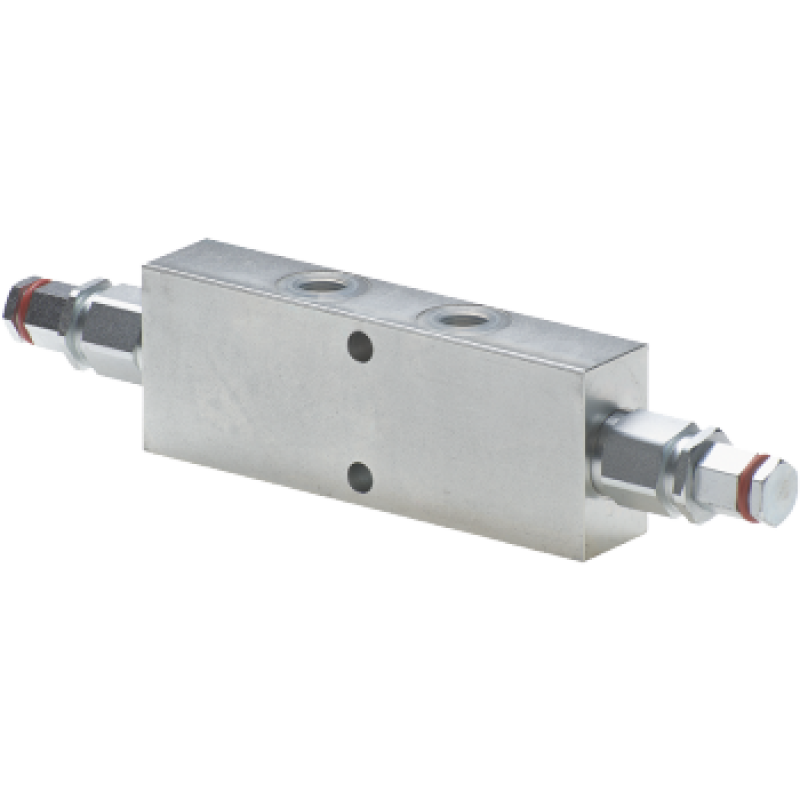

Double acting overcenter valve VT0160063520 (3/8'' BSP, 50l/min)
Click image to enlarge

Double acting overcenter valve VT0160063520 (3/8'' BSP, 50l/min)
Model: VT0160063520
  • Model:
    VT0160063520
Maximum pressure (bar)350
Maximum flow (L/min)50
Valve functionBalanced double-acting inline overcenter valve
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The VT0160063520 is a balanced double-acting inline overcenter valve. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 350 bar, valve setting 170 bar.

Documentation: DICSA. technical reference , page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 50
Port connection 3/8" BSP
Valve function Balanced double-acting inline overcenter valve
Catalog pilot ratio 1:4,25
Adjustment range (bar) 60–210
Adjustment minimum (bar) 60
Adjustment maximum (bar) 210
Valve setting (bar) 170
Original specifications — unverified

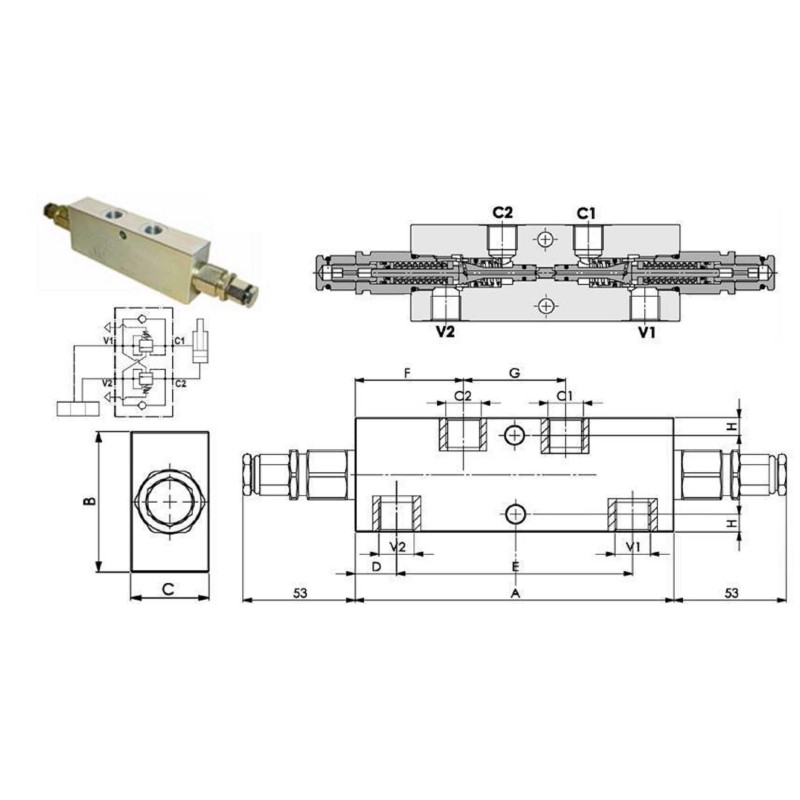

Press. increase(bar/turn) 70
B 55
H 8,5
F 51
G 48
I 8,5
D 19
C 30
E 112
A 150
