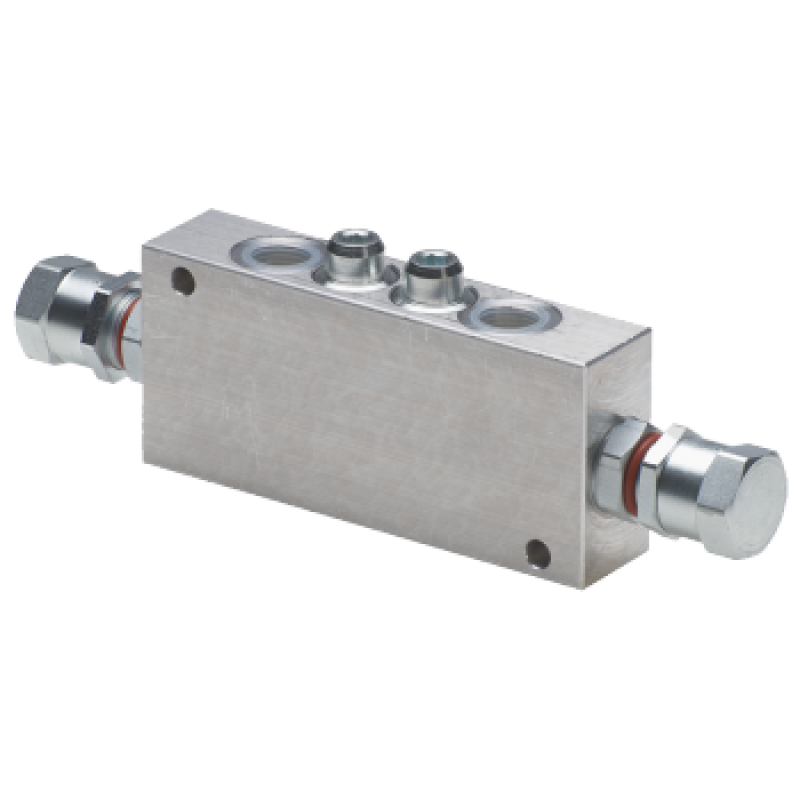

Double acting overcenter valve FPOEB70D1/2LA20 (1/2'' BSP, 70l/min)
Click image to enlarge

Double acting overcenter valve FPOEB70D1/2LA20 (1/2'' BSP, 70l/min)
Model: FPOEB70D1/2LA20
  • Model:
    FPOEB70D1/2LA20
Maximum pressure (bar)250
Maximum flow (L/min)70
Valve functionBalanced double-acting overcenter valve
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPOEB70D1/2LA20 is a balanced double-acting overcenter valve. The official exact-model entry lists maximum flow 70 L/min, maximum pressure 250 bar, valve setting 200 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Double acting balanced overcenter. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 70
Port connection 1/2" BSP
Valve function Balanced double-acting overcenter valve
Adjustment range (bar) 60–210
Adjustment minimum (bar) 60
Adjustment maximum (bar) 210
Valve setting (bar) 200
Original specifications — unverified
Pilotratio 1:3,2
Press. increase(bar/turn) 56
