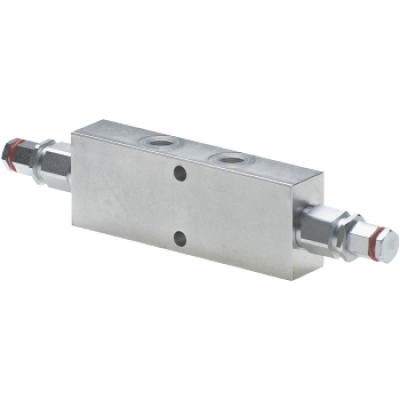

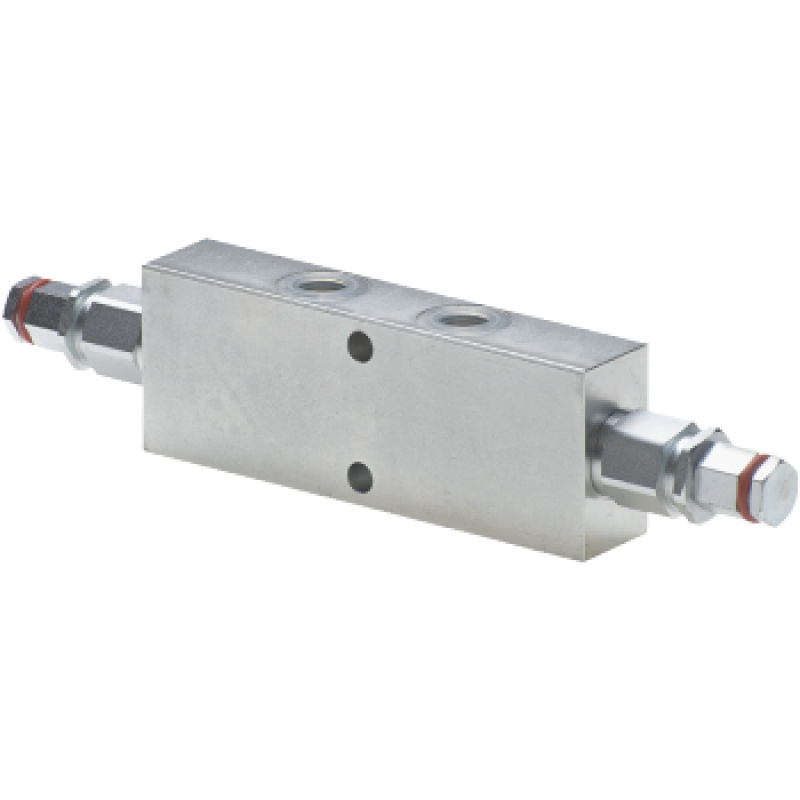

Double acting overcenter valve FPOB D 1/2 L35 (1/2'' BSP, 50l/min)
Click image to enlarge

Double acting overcenter valve FPOB D 1/2 L35 (1/2'' BSP, 50l/min)
Model: FPOB D 1/2 L35
  • Model:
    FPOB D 1/2 L35
Maximum pressure (bar)350
Maximum flow (L/min)50
Valve functionBalanced double-acting inline overcenter valve
Port connection1/2" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPOB D 1/2 L35 is a balanced double-acting inline overcenter valve. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 350 bar, valve setting 280 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Double acting balanced overcenter (line). Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 2. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 50
Port connection 1/2" BSP
Valve function Balanced double-acting inline overcenter valve
Adjustment range (bar) 80–350
Adjustment minimum (bar) 80
Adjustment maximum (bar) 350
Valve setting (bar) 280
Original specifications — unverified
Press. increase(bar/turn) 120

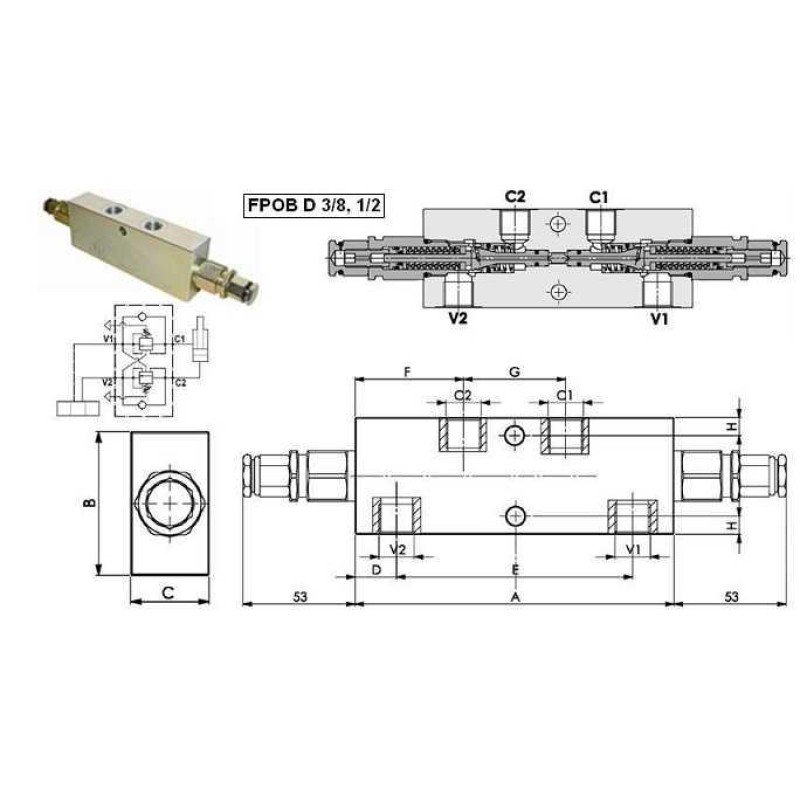

B 65
H 11
F 51
G 48
I 8,5
D 19
C 35
E 112
A 150
