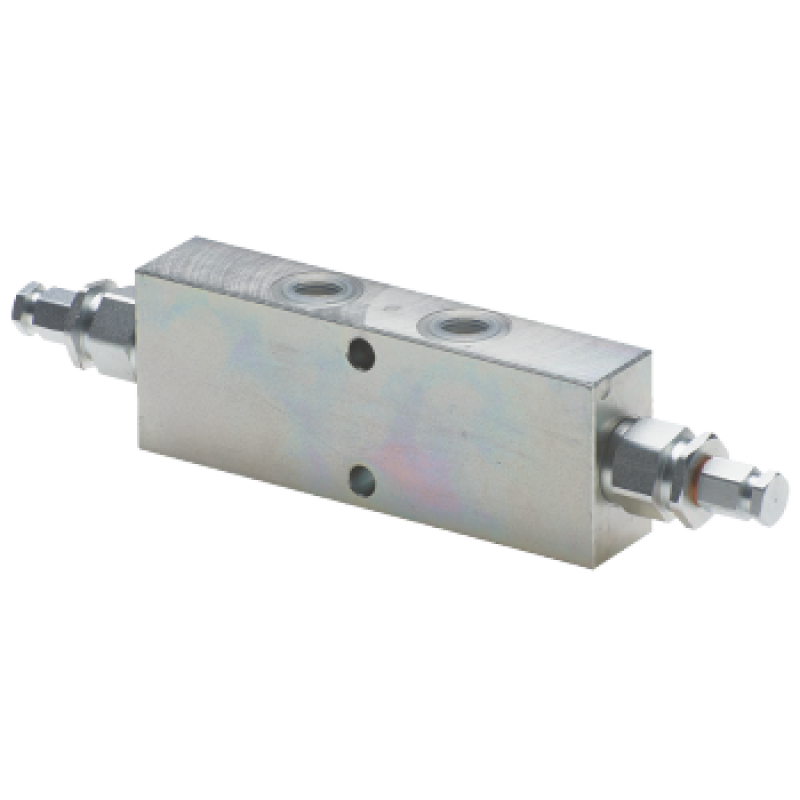

Double acting overcenter valve FPO50D3/8LU20 (3/8'' BSP, 50l/min)
Click image to enlarge

Double acting overcenter valve FPO50D3/8LU20 (3/8'' BSP, 50l/min)
Model: FPO50D3/8LU20
  • Model:
    FPO50D3/8LU20
Maximum pressure (bar)350
Maximum flow (L/min)50
Valve functionDouble-acting overcenter valve with brake release port
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPO50D3/8LU20 is a double-acting overcenter valve with brake release port. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 350 bar, valve setting 170 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Double acting overcenter valve line U with brake release port. Series reference only: this document does not list the exact imported model. It must not be used to confirm model-specific ratings or dimensions.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 50
Port connection 3/8" BSP
Secondary port connection 1/4" BSP
Valve function Double-acting overcenter valve with brake release port
Adjustment range (bar) 60–210
Adjustment minimum (bar) 60
Adjustment maximum (bar) 210
Valve setting (bar) 170
Original specifications — unverified

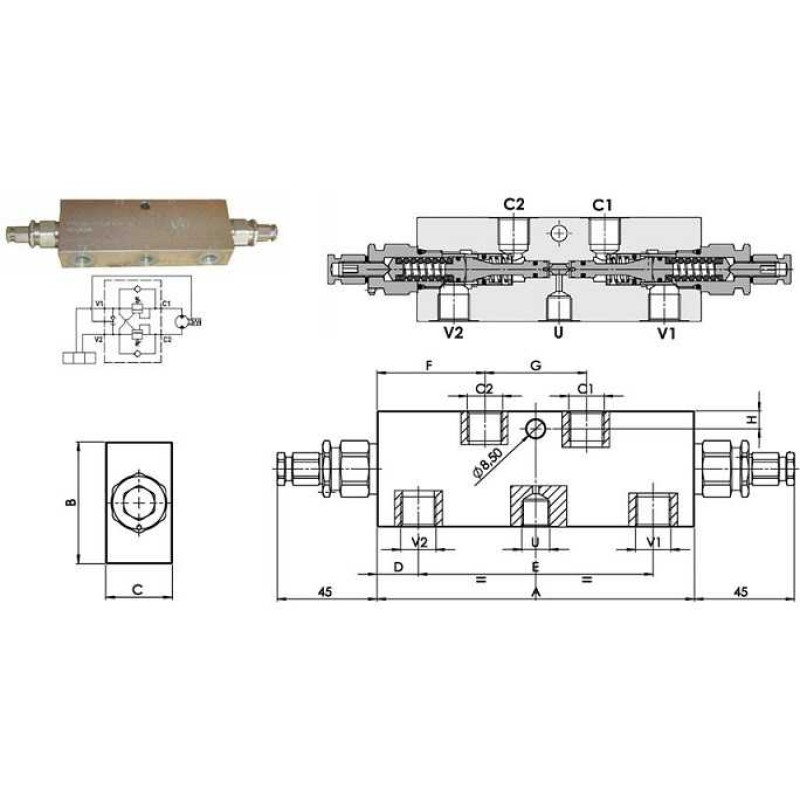

Press. increase(bar/turn) 70
B 55
H 8,5
F 51
G 48
D 19
C 30
E 112
A 150
