Hydraulic cylinder

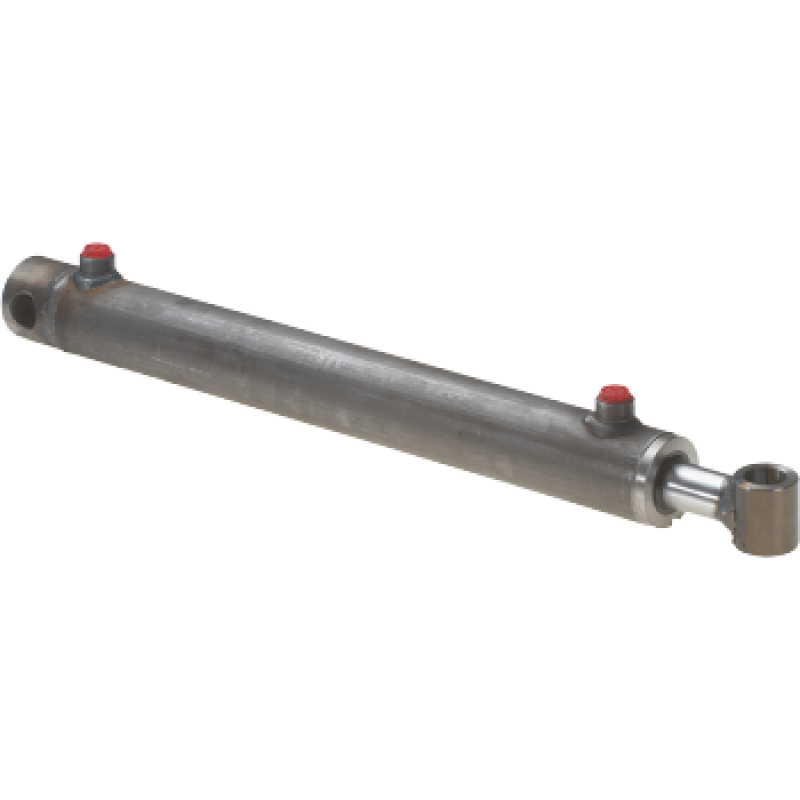

Double acting cylinder with bush and bottom drilled ECC70120100
Model: ECC70120100
Double acting cylinder with bush and bottom drilled ECC70120100. The cylinder converts fluid pressure into linear movement. Check the model-specific mounting and connection arrangement.
| Technical specifications | |
| Component type | Hydraulic cylinder |
| Equipment family | Hydraulic cylinders |
| Original specifications - unverified | |
| Working pressure, bar | 180 |
| Rod diameter, mm | 70 |
| Stroke, mm | 1 |
| R1 | 1/2'' BSP |
| Kg/100bar | 11.3 |
| ØPS | 120 H |
| H | 80 |
| I | 1270 |
| M | 81 |
| N | 65 |
| R | 40 |
| ØD | 140 |
| ØF | 40,5 |
| ØG | 70 |
