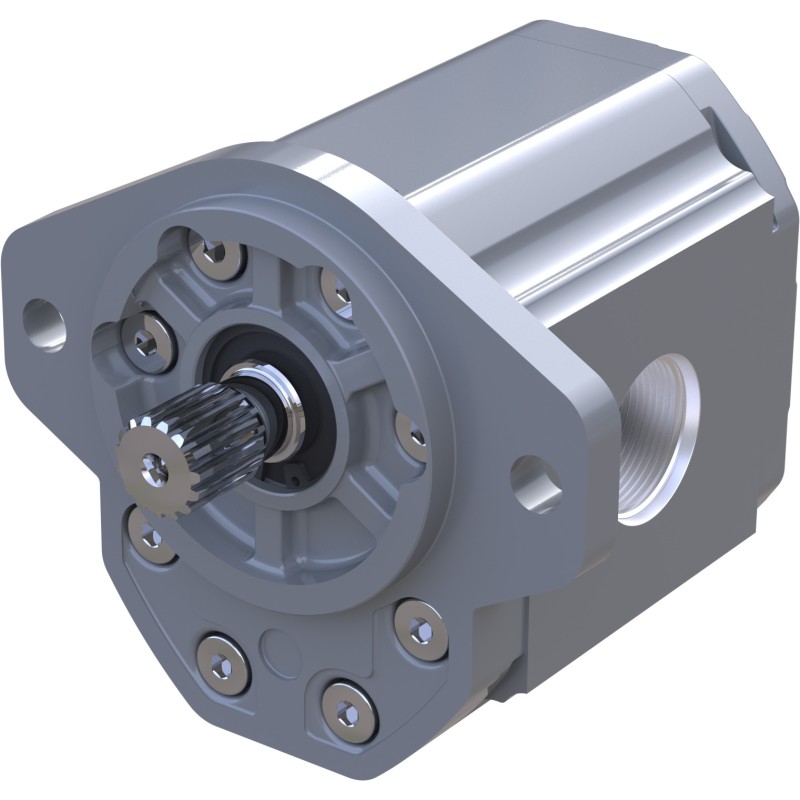

Danfoss GearMe single-stage hydraulic gear pump 83108192
Click image to enlarge
Hydraulic gear pump

Danfoss GearMe single-stage hydraulic gear pump 83108192
Model: SNP3NN-/-038-R-N-07-SH-P1-MH-MG-NN-N-B-/-NNN-N-N · Danfoss
  • Manufacturer:
    Danfoss
  • Model:
    SNP3NN-/-038-R-N-07-SH-P1-MH-MG-NN-N-B-/-NNN-N-N
Displacement (cm³/rev)38
RotationClockwise
Drive shaft specificationSplined SAE J498-15T-16/32
Ports position specificationStandard from catalogue
ConstructionExternal gear
Mounting flangeFlange SAE b with pilot D.101,6 and 2 holes for bolts
Full specifications ↓ Technical catalog · PDF

Description

83108192 is a published Danfoss GearMe hydraulic gear pump with the complete factory model code SNP3NN-/-038-R-N-07-SH-P1-MH-MG-NN-N-B-/-NNN-N-N. This single-stage execution is identified individually in the manufacturer’s product range.

The factory article specifies 38 cm³/rev nominal displacement. Rotation is clockwise. The flange, shaft and body-port specifications below identify the published execution.

GearMe pumps use a pressure-balanced external-gear design for mobile and industrial hydraulic systems. Nominal displacement labels identify the factory execution; they are not substituted for geometric displacement or a guaranteed delivered flow. Series technical information supplements the individual article specifications.

Full specifications

Technical specifications
Component type External gear pump
Product type Hydraulic gear pump
Displacement (cm³/rev) 38
Drive shaft specification Splined SAE J498-15T-16/32
Body inlet specification 31x30,18x58,72xM10 deep18 Horiz
Body outlet specification 25x52,37x26,19x M10 hor.20deep
Ports position specification Standard from catalogue
Construction External gear
Seal specification Standard seal
Factory model code SNP3NN-/-038-R-N-07-SH-P1-MH-MG-NN-N-B-/-NNN-N-N
Factory pump family SNP3NN — Gr3 Pump
Manufacturer Danfoss
Manufacturer part number 83108192
Number of stages 1
Product family GearMe
Rear cover specification Standard cover for pump
Valve setting specification without setting
Technical specifications
Rotation Clockwise
Mounting flange Flange SAE b with pilot D.101,6 and 2 holes for bolts
