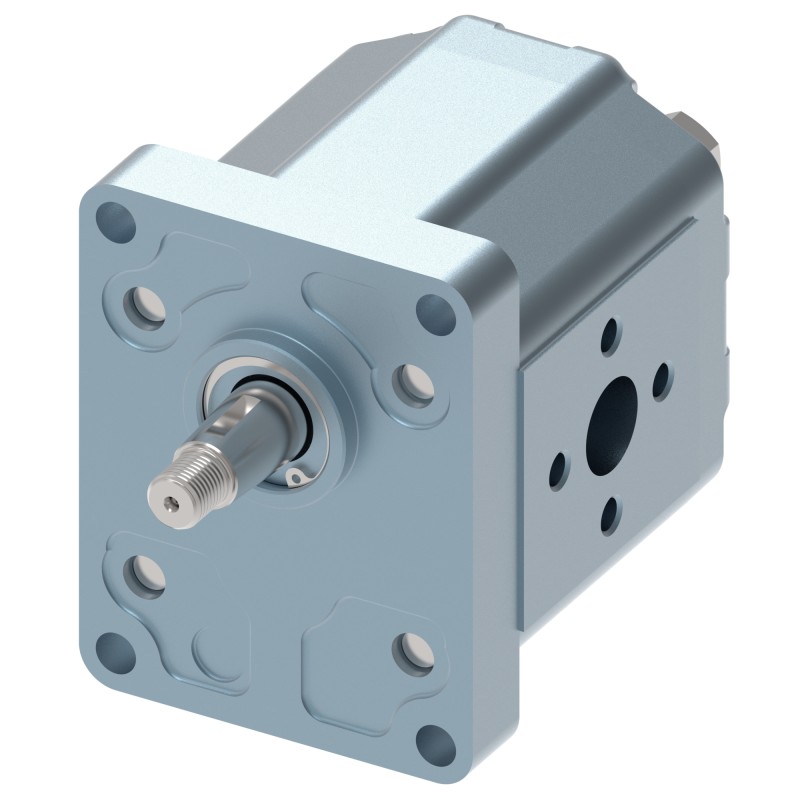

Danfoss GearMe single-stage hydraulic gear pump 83153600
Click image to enlarge
Hydraulic gear pump

Danfoss GearMe single-stage hydraulic gear pump 83153600
Model: SKP2EN-/-4,0-L-N-06-GA-E6-E6-E5-NN-N-N-/-VJT-N-N · Danfoss
  • Manufacturer:
    Danfoss
  • Model:
    SKP2EN-/-4,0-L-N-06-GA-E6-E6-E5-NN-N-N-/-VJT-N-N
Displacement (cm³/rev)4
RotationCounterclockwise
Drive shaft specificationParallel SAE diam. 15,875 L=23,8 , Key 4x18 CI06
Ports position specificationStandard from catalogue
ConstructionExternal gear
Mounting flangeFlange SAE A, pilot Ø82,55 mm and 2 holes for bolts
Full specifications ↓ Technical catalog · PDF

Description

83153600 is a published Danfoss GearMe hydraulic gear pump with the complete factory model code SKP2EN-/-4,0-L-N-06-GA-E6-E6-E5-NN-N-N-/-VJT-N-N. This single-stage execution is identified individually in the manufacturer’s product range.

The factory article specifies 4.0 cm³/rev nominal displacement. Rotation is counterclockwise. The flange, shaft and body-port specifications below identify the published execution.

GearMe pumps use a pressure-balanced external-gear design for mobile and industrial hydraulic systems. Nominal displacement labels identify the factory execution; they are not substituted for geometric displacement or a guaranteed delivered flow. Series technical information supplements the individual article specifications.

Full specifications

Technical specifications
Component type External gear pump
Product type Hydraulic gear pump
Displacement (cm³/rev) 4
Drive shaft specification Parallel SAE diam. 15,875 L=23,8 , Key 4x18 CI06
Body inlet specification 1-1/16-12UN
Body outlet specification 7/8-14UNF
Ports position specification Standard from catalogue
Construction External gear
Seal specification Standard seal
Factory model code SKP2EN-/-4,0-L-N-06-GA-E6-E6-E5-NN-N-N-/-VJT-N-N
Factory pump family SKP2EN — Gr2 Hi.Torque Pump-Ext.dr.RV
Manufacturer Danfoss
Manufacturer part number 83153600
Number of stages 1
Product family GearMe
Rear cover specification Cover for pump per relief valve with external drain 3/4-16UNF-2B
Valve setting specification Setting relief valve, velocity of product per checked setting 1750 rpm and pressure 140 bar with oil ISO VG68 a 40°-50°C
Technical specifications
Rotation Counterclockwise
Mounting flange Flange SAE A, pilot Ø82,55 mm and 2 holes for bolts
