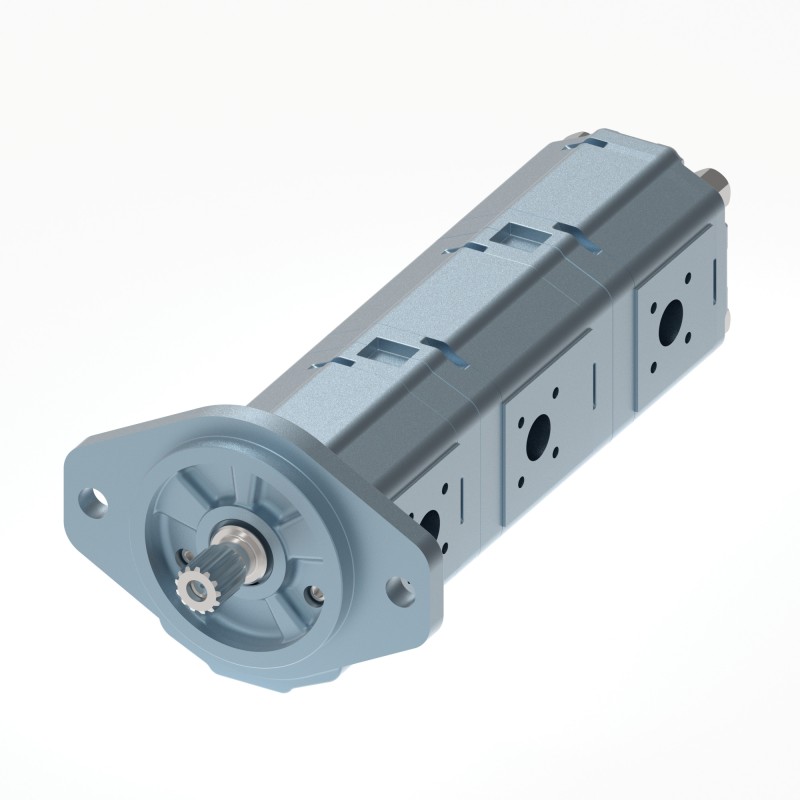

Danfoss GearMe triple-stage hydraulic gear pump 11302724

Model: 11302724 · Danfoss

Manufacturer:
Danfoss
Model:
11302724
0

Displacement (cm³/rev)11

RotationClockwise

Drive shaft specificationSAE J498-9T-16/32+Tang

Mounting flangeFlange-SAE A-pilot D82,55+2 holes for bolts

ConstructionExternal gear

Full specifications ↓ Technical catalog · PDF

Description

11302724 is a published Danfoss GearMe hydraulic gear pump with the complete factory model code PNTT---011-/-4,3-/-2,6-R-N-06-SM-P1-E6-E5-NN-E4-E3-NN-E4-E3-NN-N-N-/-NNN-N-N. This three-stage execution is identified individually in the manufacturer’s product range.

The factory article specifies 11 / 11 / 4.3 / 2.6 cm³/rev nominal displacement for its listed pumping stages. Rotation is clockwise. The flange, shaft and body-port specifications below identify the published execution.

GearMe pumps use a pressure-balanced external-gear design for mobile and industrial hydraulic systems. Nominal displacement labels identify the factory execution; they are not substituted for geometric displacement or a guaranteed delivered flow. Series technical information supplements the individual article specifications.

Full specifications

Technical specifications
Component type	External gear pump
Product type	Hydraulic gear pump
Displacement (cm³/rev)	11
Stage 1 nominal displacement (cm³/rev)	11
Stage 2 nominal displacement (cm³/rev)	4.3
Stage 3 nominal displacement (cm³/rev)	2.6
Drive shaft specification	SAE J498-9T-16/32+Tang
Construction	External gear
Seal specification	Std seal
Factory model code	PNTT---011-/-4,3-/-2,6-R-N-06-SM-P1-E6-E5-NN-E4-E3-NN-E4-E3-NN-N-N-/-NNN-N-N
Manufacturer	Danfoss
Manufacturer part number	11302724
Number of stages	3
Product family	GearMe
Rear cover specification	Std Cover for pump
Valve setting specification	without setting

Technical specifications
Rotation	Clockwise
Mounting flange	Flange-SAE A-pilot D82,55+2 holes for bolts
