Danfoss TMK FL V 315, part number 11008900, is an orbital hydraulic motor. The exact article is listed in the current manufacturer catalogue and is explicitly associated with the original dimensional drawing supplied in the local PDF. The nominal size 315 is a series designation; the drawing does not independently establish an exact geometric displacement.
The execution uses a tapered keyed shaft with a nominal diameter of 31.6 mm. The drawing defines the shaft end and mating interface. Mounting tolerances and the part-number-specific reference lengths are retained on the complete original drawing.
Main port connection: 3/4" BSP. Drain connection: 1/4" BSP. The exact drawing is the reference for thread depth, sealing arrangement and port position. BSP parallel connections and UN/UNF O-ring boss connections are different interfaces and require the corresponding mating fittings.
The FL V execution combines a parking brake and flushing arrangement. Its brake-release/drain connection is 1/4 inch BSP and the vent connection is 7/16-20 UNF. The factory drawing identifies the 31.6 mm tapered shaft; parameters of the neighbouring inch-shaft TMK execution must not be substituted.
The local PDF is an exact article dimensional reference. It does not establish continuous, intermittent or peak operating-pressure, torque or flow ratings for this execution. Select the operating point from the applicable manufacturer performance information; no ratings from a neighbouring execution are inferred here.

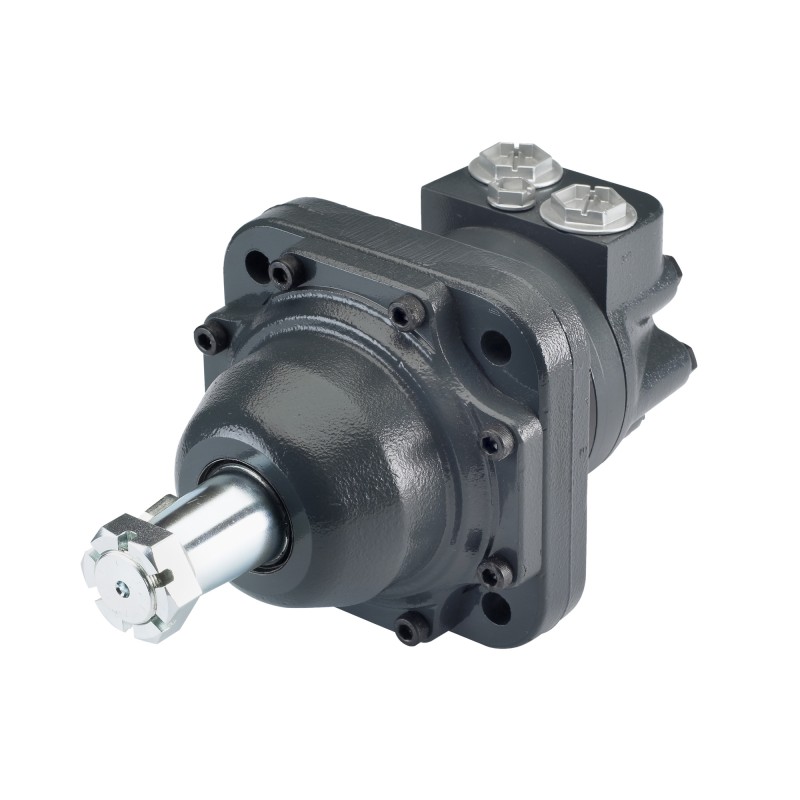

Representative Danfoss TMK series photograph supplied on this article’s manufacturer page; shaft, ports, mounting, sensor arrangement and displacement may differ. Use the exact factory-bound dimensional drawing for this article.
