Danfoss TMVW 500, part number 11006565, is an orbital hydraulic motor. The exact article is listed in the current manufacturer catalogue and is explicitly associated with the original dimensional drawing supplied in the local PDF. The nominal size 500 is a series designation; the drawing does not independently establish an exact geometric displacement.
This execution has a wheel-hub output with a thread-hole flange. Check the factory drawing for the complete mounting and output-flange geometry, thread layout and the applicable part-number length row.
Main port connection: 1" BSP. Drain connection: 1/4" BSP. The exact drawing is the reference for thread depth, sealing arrangement and port position. BSP parallel connections and UN/UNF O-ring boss connections are different interfaces and require the corresponding mating fittings.
The local PDF is an exact article dimensional reference. It does not establish continuous, intermittent or peak operating-pressure, torque or flow ratings for this execution. Select the operating point from the applicable manufacturer performance information; no ratings from a neighbouring execution are inferred here.

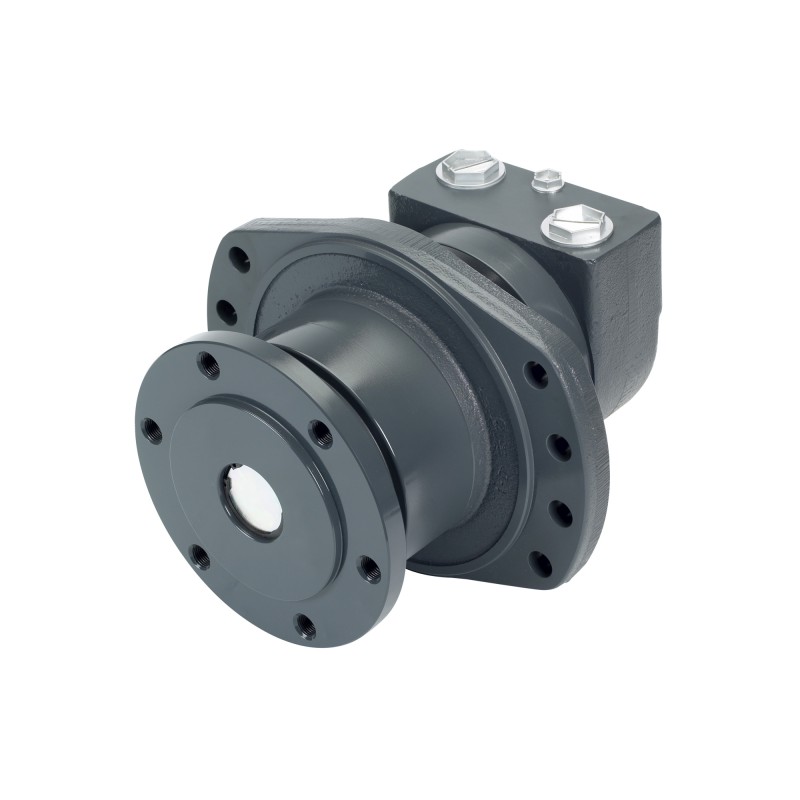

Representative Danfoss TMV series photograph supplied on this article’s manufacturer page; shaft, ports, mounting, sensor arrangement and displacement may differ. Use the exact factory-bound dimensional drawing for this article.
