Hydraulic cylinder

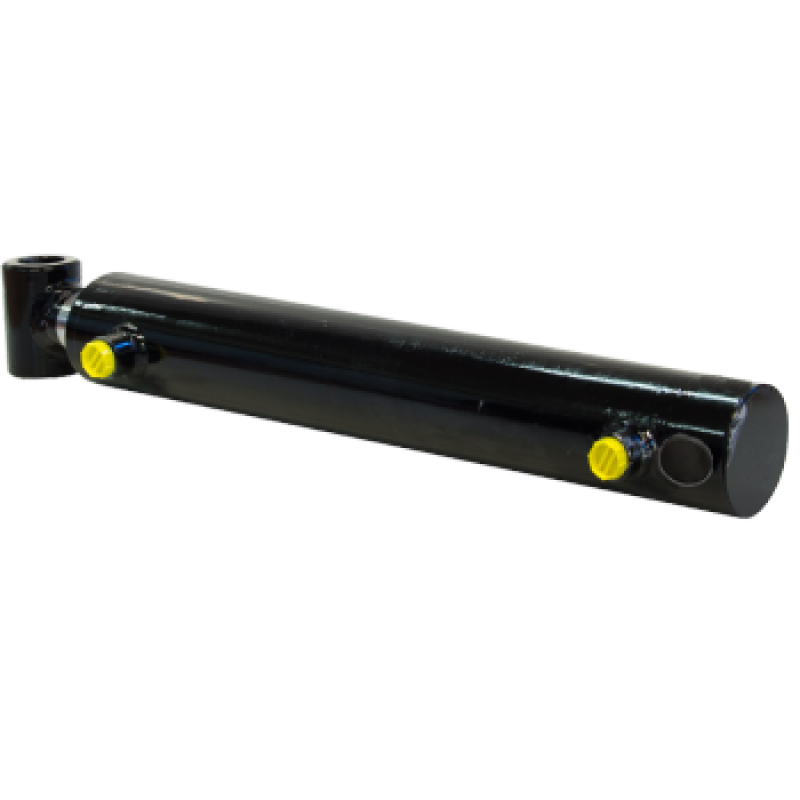

D.A. cylinder (bush and drilled rear end) CTDECC2032200
Model: CTDECC2032200
Stroke (mm)200
Port 1 thread1/4" BSP
D.A. cylinder (bush and drilled rear end) CTDECC2032200. The cylinder converts fluid pressure into linear movement. Check the model-specific mounting and connection arrangement.
Model specifications: Stroke (mm): 200.
D.A. cylinder (bush and drilled rear end). The exact model is listed on page 1.
| Technical specifications | |
| Component type | Hydraulic cylinder |
| Stroke (mm) | 200 |
| Port 1 thread | 1/4" BSP |
| Equipment family | Hydraulic cylinders |
| Original specifications - unverified | |
| Working pressure, bar | 180 |
| Rod diameter, mm | 20 |
| Stroke, mm | 200 |
| R1 | /4'' BS |
| g/10ebar | 800 |
| ØPS | 32 H9 |
| G | 33 |
| H | 229,5 |
| I | 355 |
| M | 43 |
| N | 78 |
| R | 17 |
| ØD | 40 |
| ØF | 16 |
