Valve

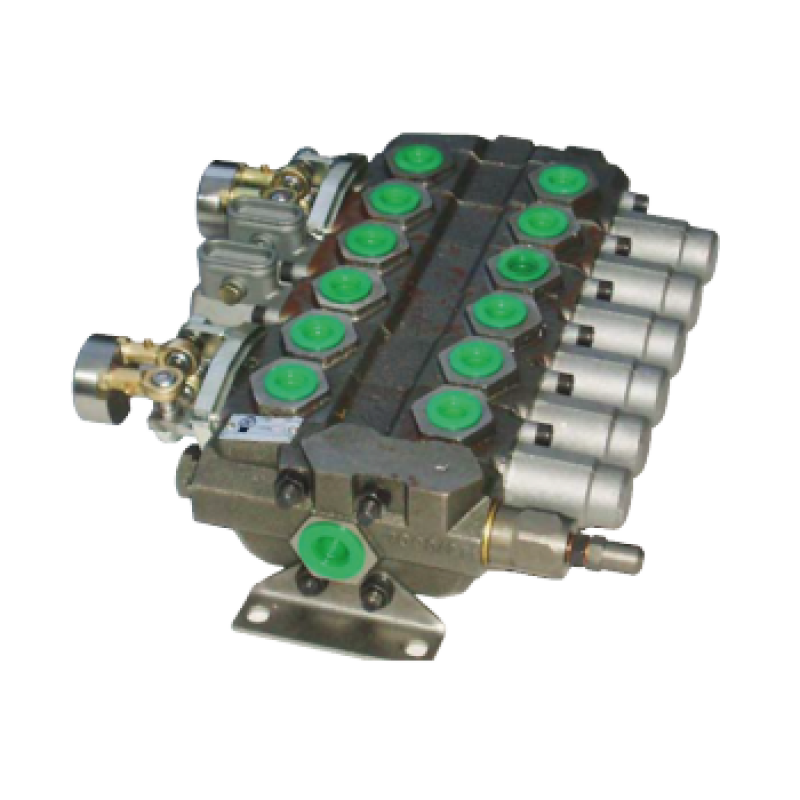

Control valve type 406 - 1/2'' BSP - 80 l/min, double acting spool (type D) 06N1PA12DDDDDDDD

Model: 06N1PA12DDDDDDDD

Description

Control valve type 406 - 1/2'' BSP - 80 l/min, double acting spool (type D) 06N1PA12DDDDDDDD. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.

Technical documentation

Control valve type 406 - 1/2" BSP - 80 l/min, double acting spool (type D). The exact model is confirmed by the primary product record. This PDF covers the product family; model-specific values are not independently confirmed by this document.

Full specifications

Technical specifications
Component type Valve
Equipment family 3 pos. Return by spring (type 1)
Original specifications - unverified
Max. pressure, bar 350
Flow max, l/min D80
R1 1/2'' BSP4
Levers 9
