Valve

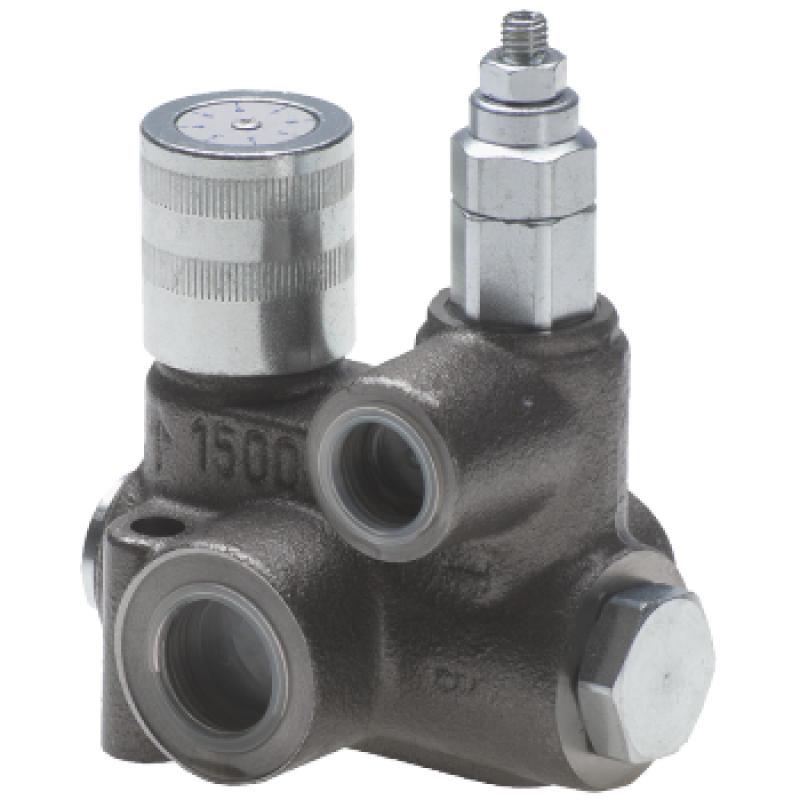

Comp.flow contr.valve-with relief valve RF type RF40PV
Model: RF40PV
Maximum pressure (bar)250
Port 1 thread1/2"BSP
Comp.flow contr.valve-with relief valve RF type RF40PV. The valve provides a pressure-relief path in the circuit. Use exact model documentation for its operating limits.
Model specifications: Maximum pressure (bar): 250.
Comp.flow contr.valve-with relief valve RF type. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 250 |
| Port 1 thread | 1/2"BSP |
| Port 2 thread | 3/8"BSP |
| Port 3 thread | 1/2"BSP |
| Equipment family | Flow control valves |
| Original specifications - unverified | |
| Max. pressure, bar | 250 |
| Flow max, l/min | 40 |
| R1 | 1/2''BSP |
| R2 | 3/8''BSP |
| A | 87 |
| C | 65 |
| D | 67 |
| E | 46 |
| F | 22,5 |
| H | 98 |
| R3 | 1/2''BSP |
