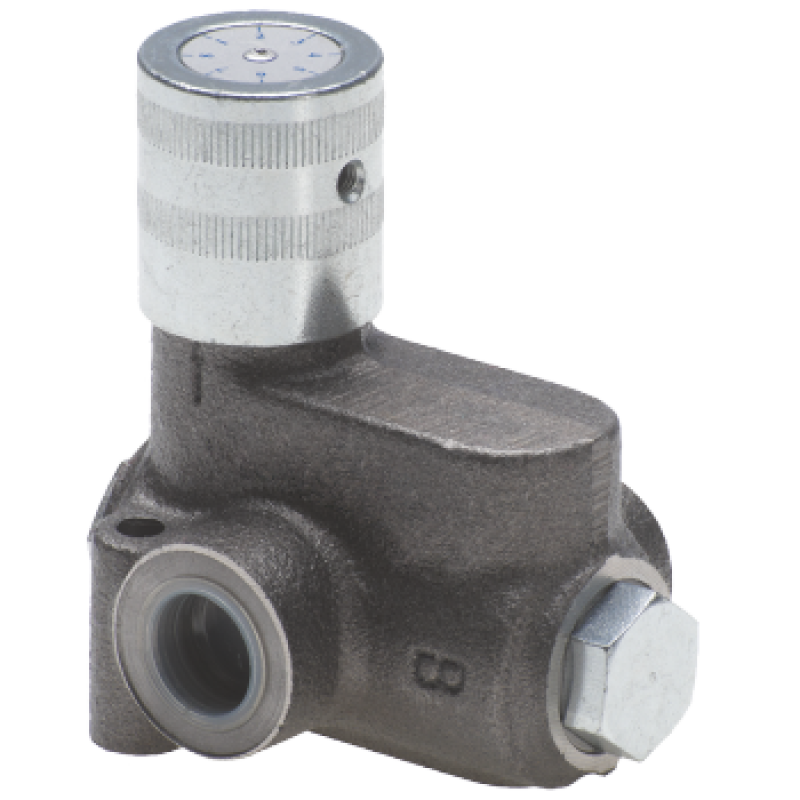

Compensated flow control valve- RF type RF70P
Click image to enlarge

Compensated flow control valve- RF type RF70P
Model: RF70P
  • Model:
    RF70P
Maximum pressure (bar)250
Maximum flow (L/min)80
Valve functionRF pressure-compensated flow control valve
Port connection3/4" BSP
Full specifications ↓ Technical catalog · PDF

Description

The RF70P is a rf pressure-compensated flow control valve. The official exact-model entry lists maximum flow 80 L/min, maximum pressure 250 bar.

Documentation: DICSA. technical reference , page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 80
Maximum controlled flow (L/min) 70
Port connection 3/4" BSP
Secondary port connection 1/2" BSP
Third port connection 3/4" BSP
Valve function RF pressure-compensated flow control valve
Original specifications — unverified
Filtration degree 25
B 101
F 52
D 105
C 80
E 24,5
A 106
