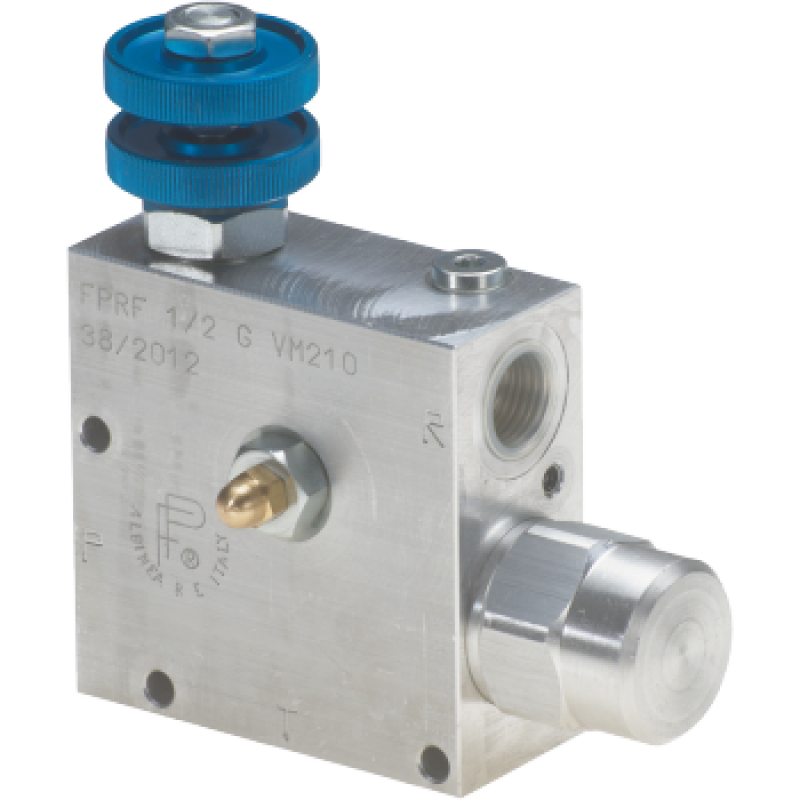

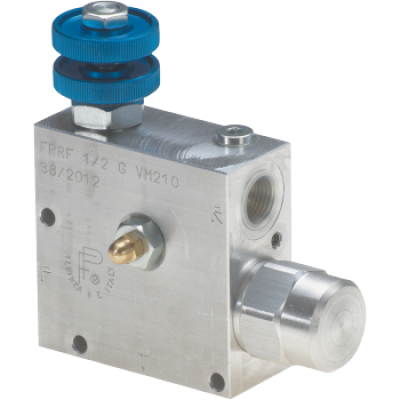

Compensated flow control valve- FPRF type with relief valve FPRF3/8GVM210
Click image to enlarge

Compensated flow control valve- FPRF type with relief valve FPRF3/8GVM210
Model: FPRF3/8GVM210
  • Model:
    FPRF3/8GVM210
Maximum pressure (bar)250
Maximum flow (L/min)50
Valve functionFPRF pressure-compensated flow control valve with relief valve
Port connection3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

The FPRF3/8GVM210 is a fprf pressure-compensated flow control valve with relief valve. The official exact-model entry lists maximum flow 50 L/min, maximum pressure 250 bar.

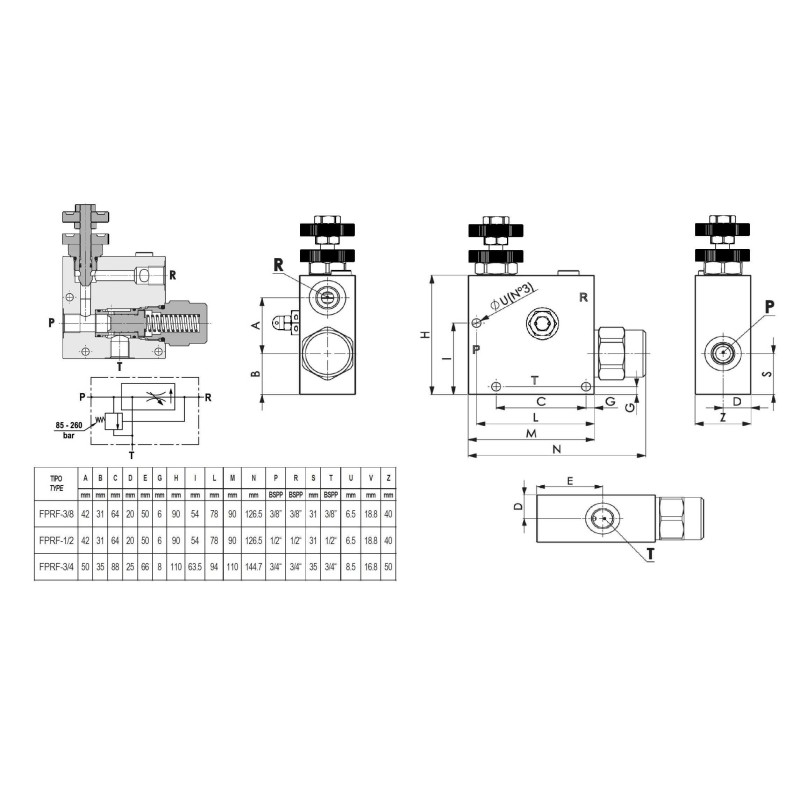

Documentation: DICSA. technical reference , page 1. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 50
Maximum regulated flow (L/min) 30
Port connection 3/8" BSP
Valve function FPRF pressure-compensated flow control valve with relief valve
Original specifications — unverified
Max. reg. flow, l/min 30
