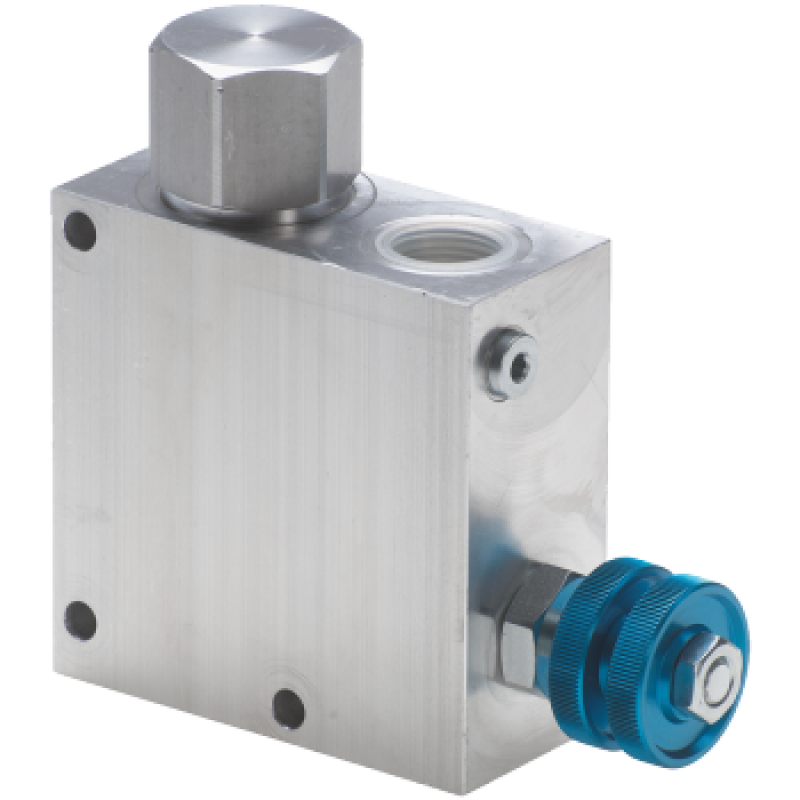

Compensated flow control valve- FPRF type FPRF1/2G
Click image to enlarge

Compensated flow control valve- FPRF type FPRF1/2G
Model: FPRF1/2G
  • Model:
    FPRF1/2G
Maximum pressure (bar)250
Maximum flow (L/min)90
Valve functionFPRF pressure-compensated flow control valve
Port connection1/2" BSPP
Full specifications ↓ Technical catalog · PDF

Description

The FPRF1/2G is a fprf pressure-compensated flow control valve. The official exact-model entry lists maximum flow 90 L/min, maximum pressure 250 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Compensated flow control valve- FPRF type. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.

Full specifications

Technical specifications
Maximum pressure (bar) 250
Maximum flow (L/min) 90
Maximum regulated flow (L/min) 50
Port connection 1/2" BSPP
Valve function FPRF pressure-compensated flow control valve

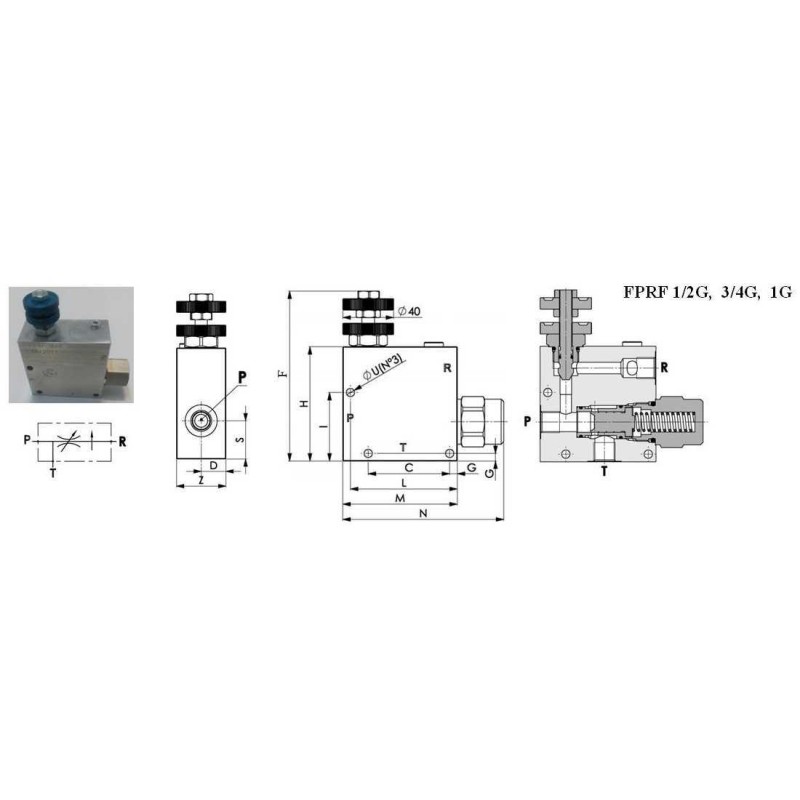

Original specifications — unverified
Max. reg. flow, l/min 50
R1 1/2''BSP
L 78
H 90
F 133,5
G 6
I 54
D 20
S 31
M 90
N 126,5
C 64
Z 40
