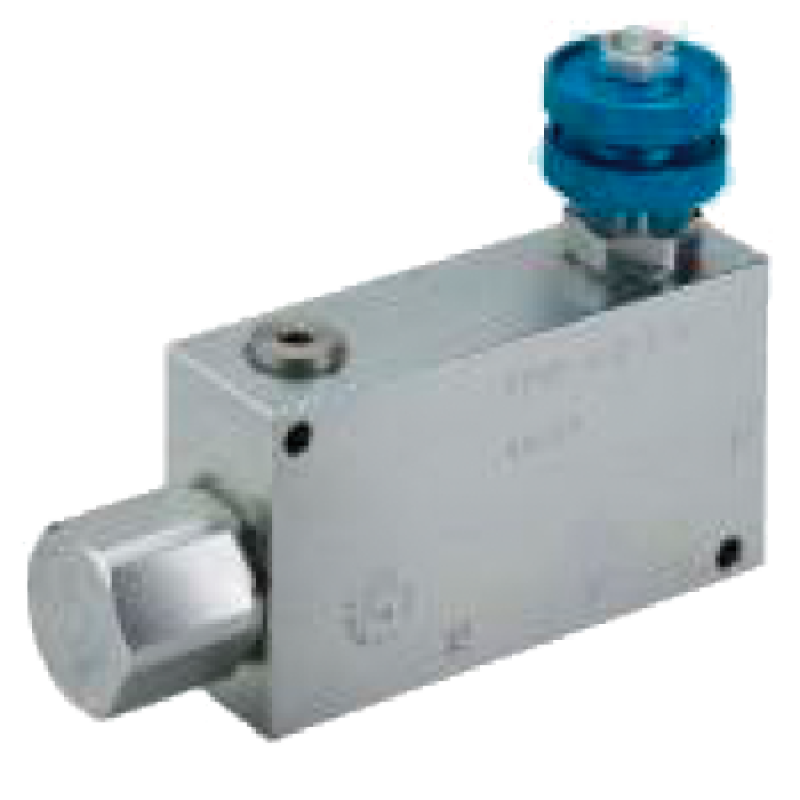

Flow control valve FPVP 1/2 S G (90 l/min, 1/2'' BSP, 3 ways, compensated)
Click image to enlarge

Flow control valve FPVP 1/2 S G (90 l/min, 1/2'' BSP, 3 ways, compensated)
Model: FPVP 1/2 S G
  • Model:
    FPVP 1/2 S G
Maximum pressure (bar)350
Maximum flow (L/min)90
Valve functionFPVP three-way pressure-compensated flow control valve
Full specifications ↓ Technical catalog · PDF

Description

The FPVP 1/2 S G is a fpvp three-way pressure-compensated flow control valve. The official exact-model entry lists maximum flow 90 L/min, maximum pressure 350 bar.

Documentation: DICSA. Technical documentation: verification pending. Check the applicable product revision, hydraulic symbol and port arrangement before selection.

Technical documentation

Compensated flow control valve 3 ways - FPVP type (steel). Series reference only: this document does not list the exact imported model. It must not be used to confirm model-specific ratings or dimensions.

Full specifications

Technical specifications
Maximum pressure (bar) 350
Maximum flow (L/min) 90
Maximum regulated flow (L/min) 50
Valve function FPVP three-way pressure-compensated flow control valve
Original specifications — unverified
Max. reg. flow, l/min 50

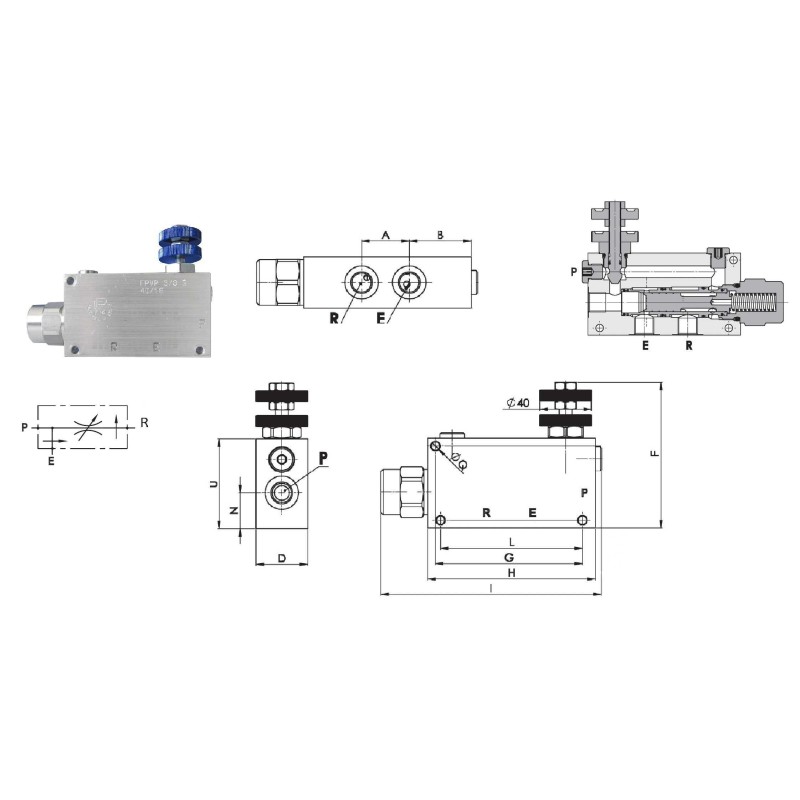

R1 1/2'' BSP
L 110
B 48
H 130
F 113,7
G 114
I 171,3
D 40
N 28
A 37
U 70
