Valve

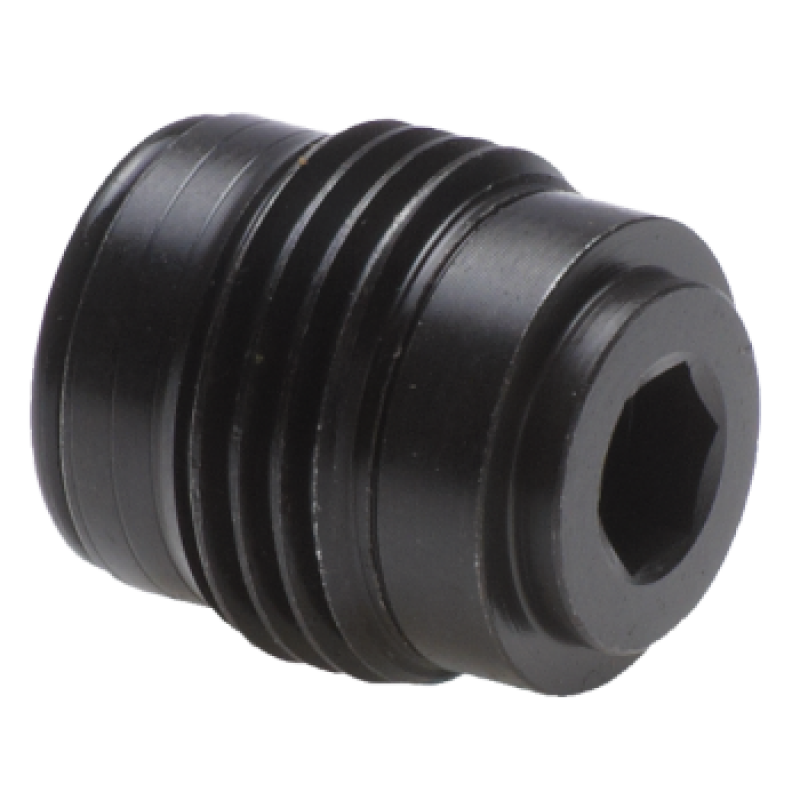

Check-valve insert version FPRI 1/4
Model: FPRI 1/4
Check-valve insert version FPRI 1/4. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.
Check-valve insert version. Archived DICSA technical sheet from the 2023 source import. The exact model is listed on page 1. Specifications describe that catalogue revision.
| Technical specifications | |
| Component type | Valve |
| Equipment family | Check-valves |
| Original specifications - unverified | |
| Max. pressure, bar | 350 |
| Flow max, l/min | 15 |
| Install.torque | 6 |
| R1 | 1/4'' BSP |
| OR1 | 9x1 |
| C | 9,2 |
| D | 11,8 |
| E | 11,3 |
| F | 1 |
| G | 5,5 |
| H | 6 |
| I | 17,5 |
| L | 29 |
| L1 | 26 |
| N | 8 |
