Cartridge valve normally closed, double pilot check valve VEDA10F
Click image to enlarge
Solenoid-operated cartridge valve

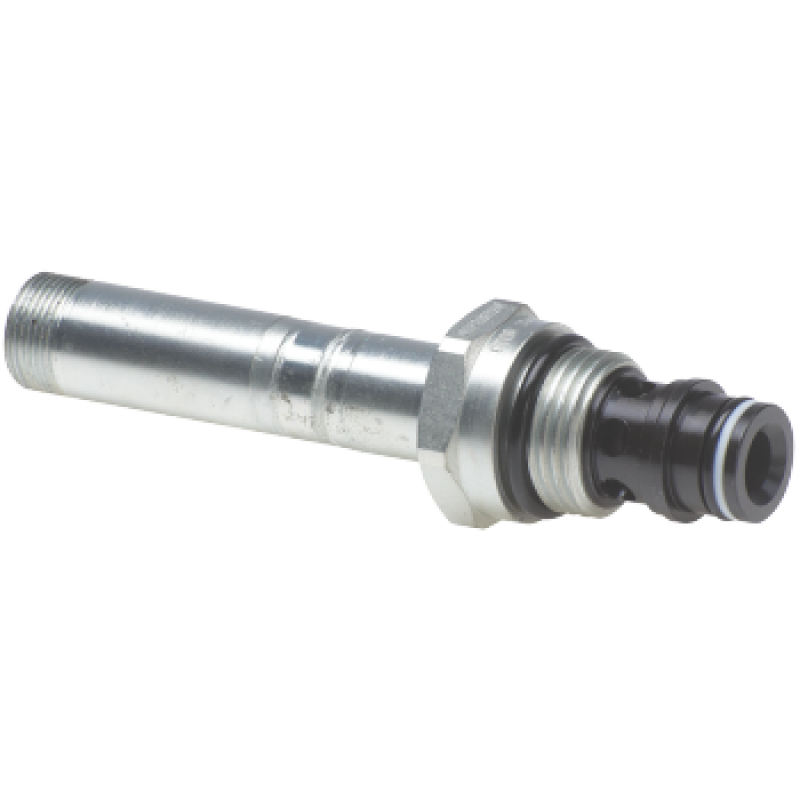

Cartridge valve normally closed, double pilot check valve VEDA10F
Model: VEDA10F
  • Model:
    VEDA10F
Maximum pressure (bar)220
Maximum flow (L/min)30
Normal stateNormally closed
Cartridge thread7/8-14 UNF
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The VEDA10F is a solenoid-operated cartridge valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Solenoid-operated cartridge valve
Cartridge thread
7/8-14 UNF
Cartridge size
SAE10
Maximum flow (L/min)
30
Maximum pressure (bar)
220
Normal state
Normally closed
Number of ways
2

Technical documentation

Official technical documentation (PDF).

Source notes

  • Coil voltage is not specified in this cartridge-only row; do not infer an included coil.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Solenoid-operated cartridge valve
Normal state Normally closed
Number of ways 2
Maximum pressure (bar) 220
Maximum flow (L/min) 30
Cartridge thread 7/8-14 UNF
Cartridge size SAE10
Original specifications — unverified
R1 7/8-14 UNF
