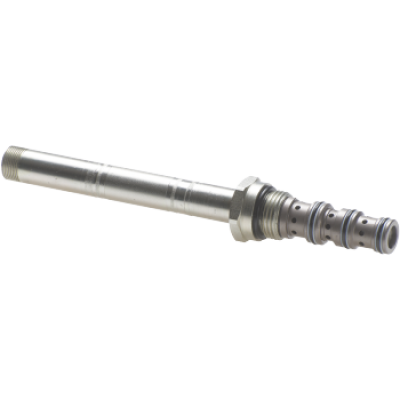

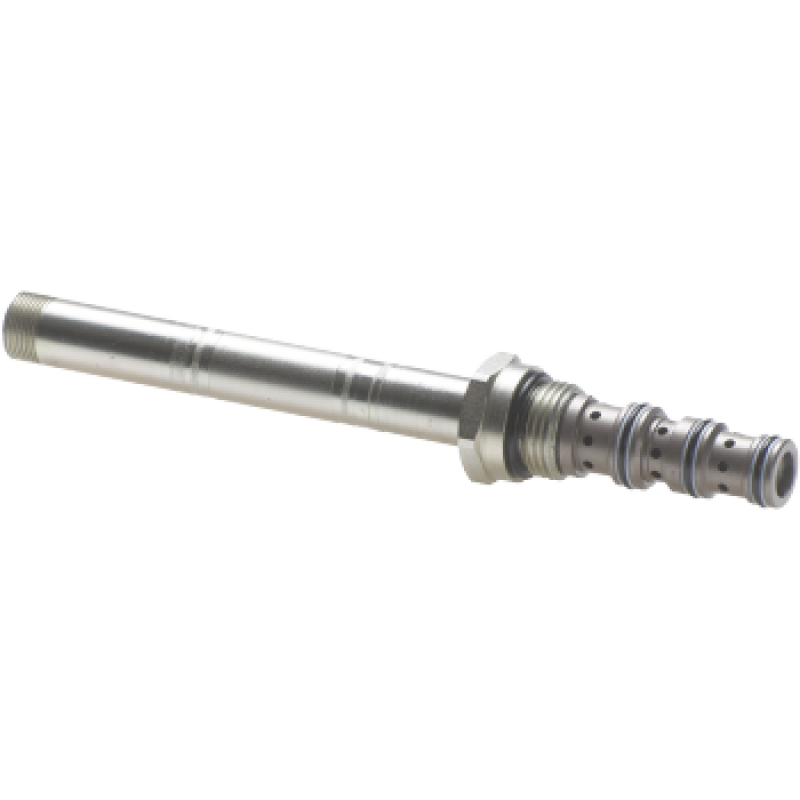

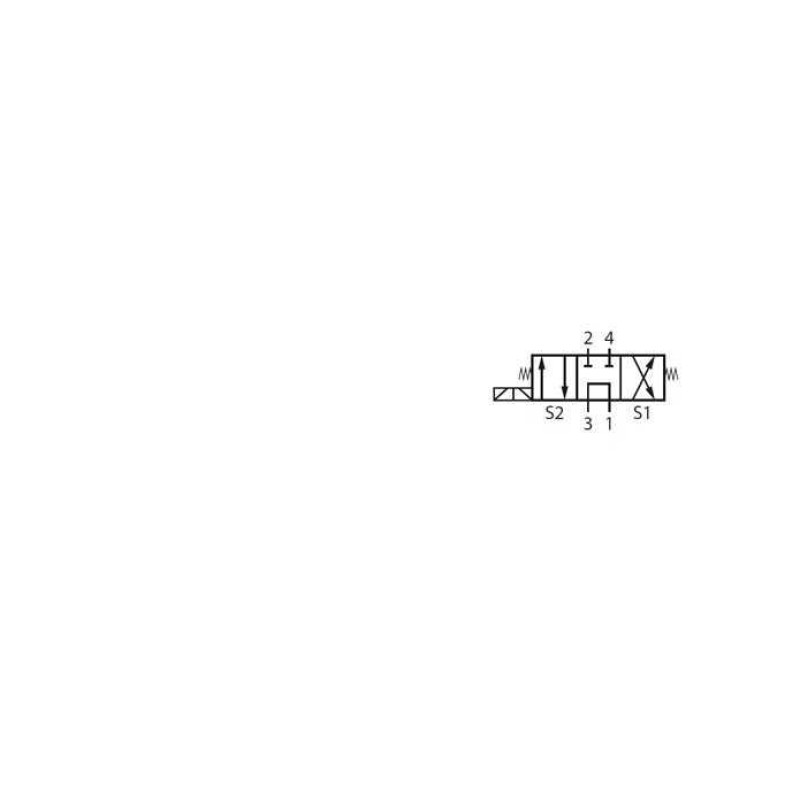

Cartridge valve 4 ways 3 pos. spool no.2 VECM10F
Click image to enlarge
Solenoid-operated cartridge valve

Cartridge valve 4 ways 3 pos. spool no.2 VECM10F
Model: VECM10F
  • Model:
    VECM10F
Maximum pressure (bar)310
Maximum flow (L/min)35
Number of ways4
Cartridge thread7/8-14UNF
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The VECM10F is a solenoid-operated cartridge valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Solenoid-operated cartridge valve
Cartridge thread
7/8-14UNF
Cartridge size
SAE 10
Maximum flow (L/min)
35
Maximum pressure (bar)
310
Number of ways
4
Number of positions
3

Technical documentation

Official technical documentation (PDF).

Source notes

  • Coil voltage is not specified in this cartridge-only row; do not infer an included coil.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Solenoid-operated cartridge valve
Number of ways 4
Number of positions 3
Maximum pressure (bar) 310
Maximum flow (L/min) 35
Cartridge thread 7/8-14UNF
Cartridge size SAE 10
Original specifications — unverified
R1 7/8-14UNF
