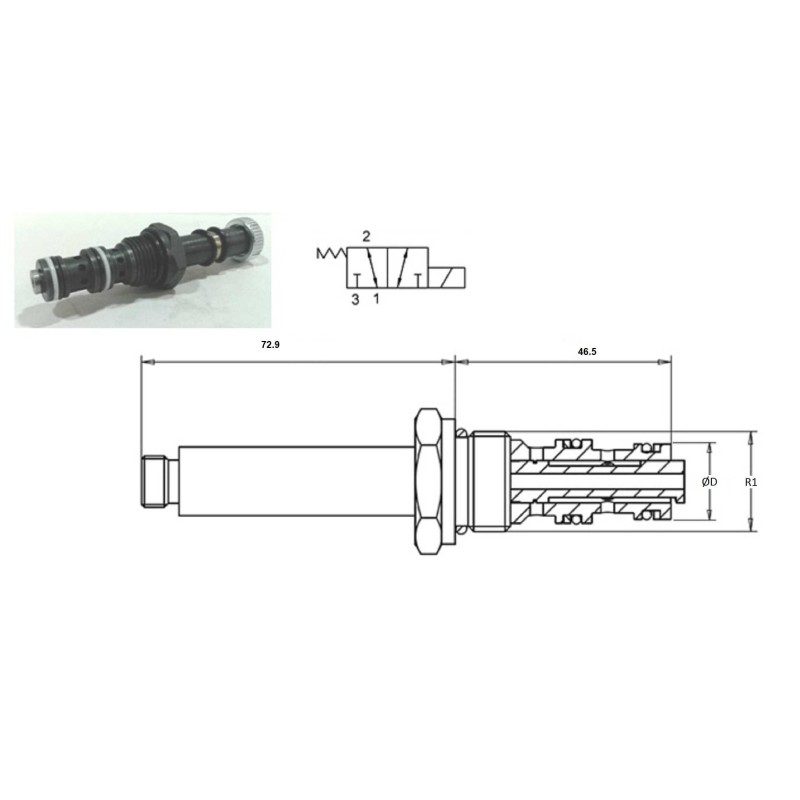

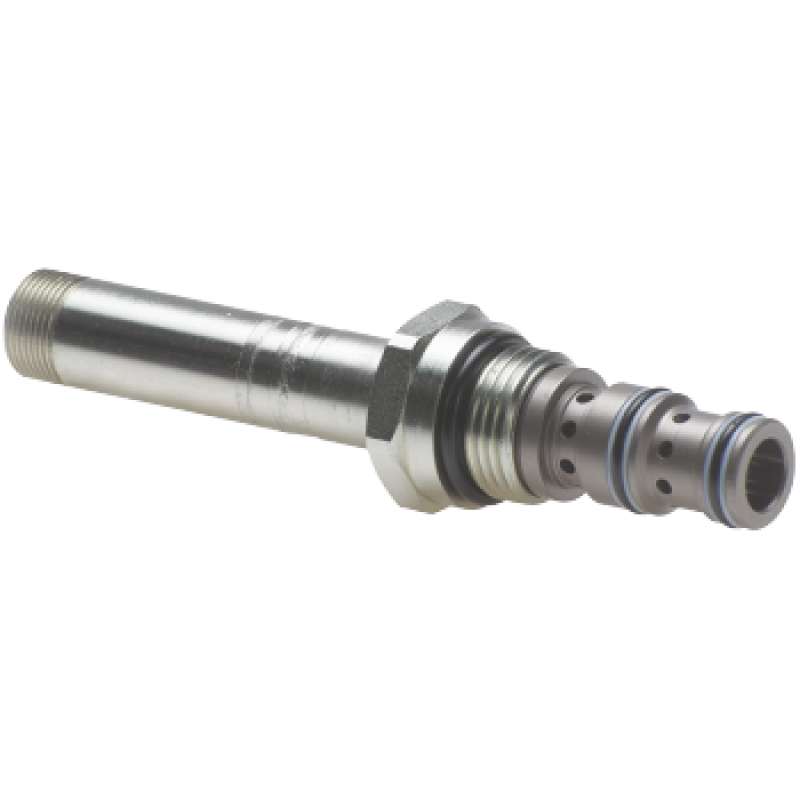

Cartridge valve 3 ways VECO10F

Technical overview

The VECO10F is a solenoid-operated cartridge valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type

Solenoid-operated cartridge valve

Cartridge thread

7/8-14UNF

Cartridge size

SAE10

Maximum flow (L/min)

35

Maximum pressure (bar)

310

Number of ways

3

Technical documentation

Official technical documentation (PDF).

Source notes

• Coil voltage is not specified in this cartridge-only row; do not infer an included coil.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
