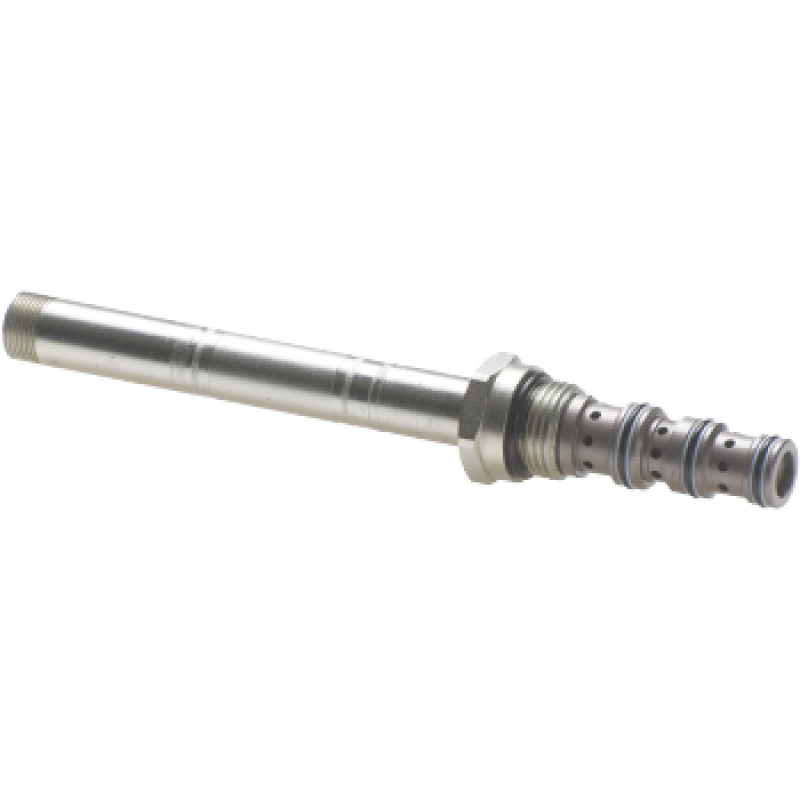

Cartdrigde valve 4 ways 3 pos. spool nº3 VEDE10
Model: VEDE10
Maximum pressure (bar)230
Cartdrigde valve 4 ways 3 pos. spool nº3 VEDE10. The valve controls the fluid circuit according to its source family. Check the exact port and actuation arrangement.
Model specifications: Maximum pressure (bar): 230.
Cartdrigde valve 4 ways 3 pos. spool nº3. The exact model is listed on page 1.
| Technical specifications | |
| Component type | Valve |
| Maximum pressure (bar) | 230 |
| Equipment family | Hydraulic valves with electric drive |
| Original specifications - unverified | |
| Max. pressure, bar | 230 |
| Flow max, l/min | 15 |
| R1 | 7/8''-14UNF |
| Size | 10 |
