Cartdrigde valve 2 ways normally open VENA12

Technical overview

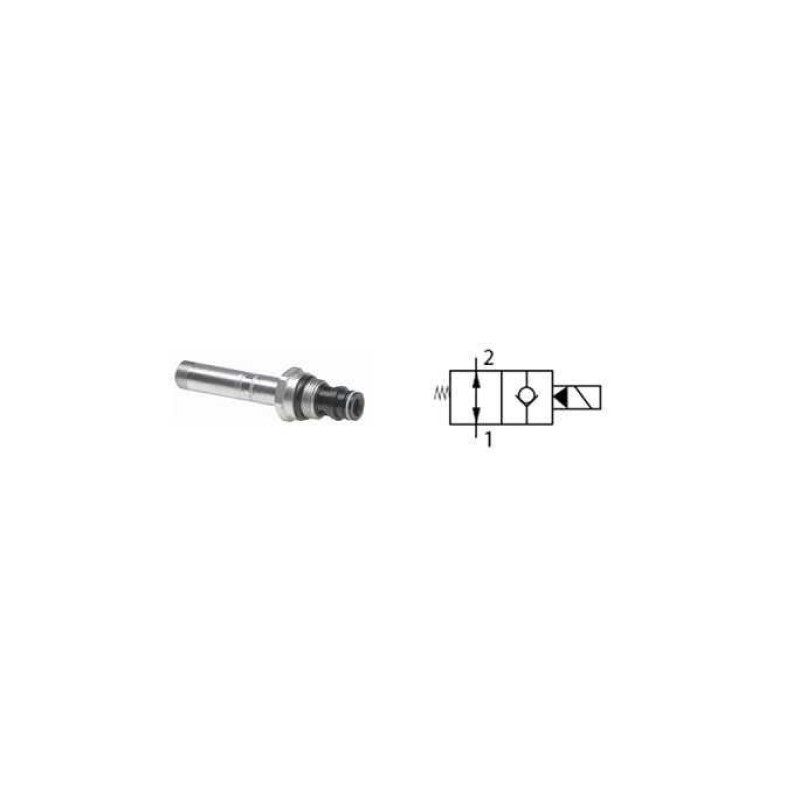

The VENA12 is a solenoid-operated cartridge valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type

Solenoid-operated cartridge valve

Cartridge thread

1"1/16-12UNF

Cartridge size

12

Maximum flow (L/min)

115

Maximum pressure (bar)

210

Normal state

Normally open

Number of ways

2

Technical documentation

Official technical documentation (PDF).

Source notes

• Coil voltage is not specified in this cartridge-only row; do not infer an included coil.

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.
