Bosch Rexroth Z2S6A1-6X/ pilot-operated check valve
Click image to enlarge

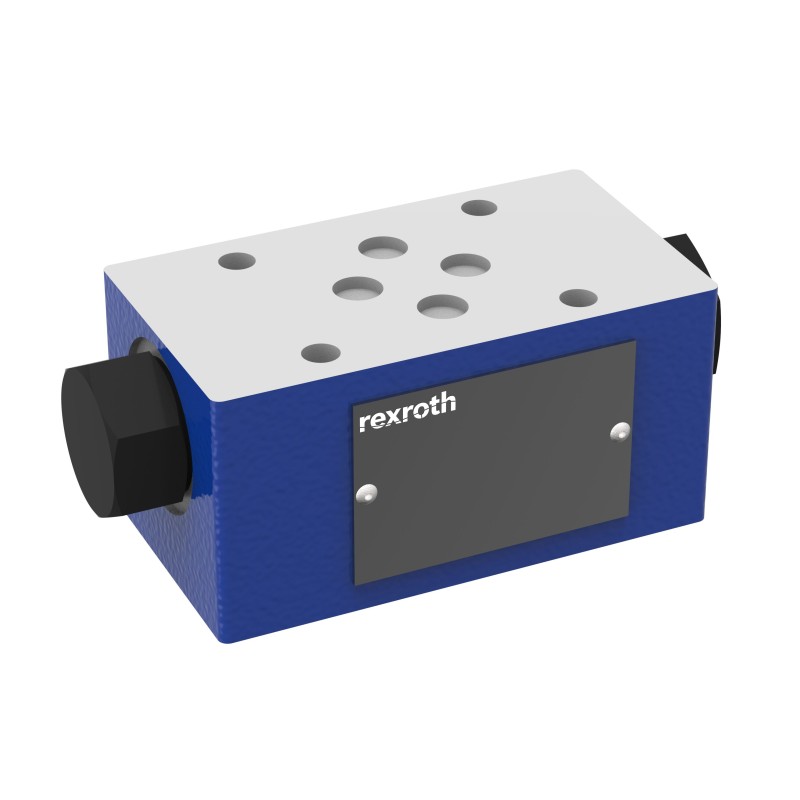

Pilot-operated check valve

Bosch Rexroth Z2S6A1-6X/ pilot-operated check valve
Model: Z2S6A1-6X/ · Bosch Rexroth
Maximum operating pressure (bar)350
Maximum flow (l/min)80
Control functionPilot-operated check valve
Actuationwith mechanical actuation
Port count4
Mounting interfaceISO 4401-03-02-0-05
Full specifications ↓ Technical catalog · PDF

Description

Z2S6A1-6X/ is a Bosch Rexroth pilot-operated check valve. This pilot-operated check valve provides load-holding isolation in a hydraulic circuit. Hydraulic pilot pressure releases the check function. Its sandwich plate is designed for installation in a vertical valve stack.

The manufacturer lists a maximum operating pressure of 350 bar and a maximum flow of 80 L/min for this execution.

Mounting: Sandwich plate. Seal material: NBR. Spool: A1 → A2. Switching positions: 2.

Full specifications

Technical specifications
Component type Pilot-operated check valve
Maximum operating pressure (bar) 350
Maximum flow (l/min) 80
Port count 4
Mounting interface ISO 4401-03-02-0-05
Mounting type Sandwich plate
Compatible hydraulic fluids HFC / HL / HLP / HLPD / HVLP / HVLPD
Equipment family Z2S
Control function Pilot-operated check valve
Manufacturer Bosch Rexroth
Manufacturer part number R900347498
Spool symbol A1 → A2
Switching position count 2
Nominal size 6
Weight (kg) 0.94
Technical specifications
Actuation with mechanical actuation
Technical specifications
Seal material NBR
