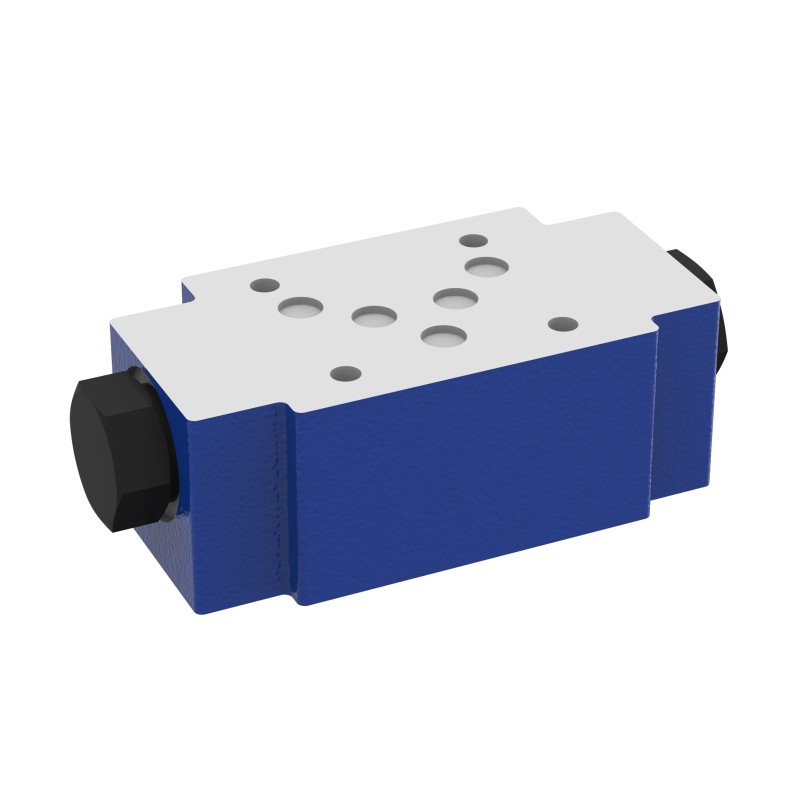

Pilot-operated check valve

Bosch Rexroth Z2S10B1-3X/ pilot-operated check valve
Model: Z2S10B1-3X/ · Bosch Rexroth
Maximum operating pressure (bar)350
Maximum flow (l/min)160
Control functionPilot-operated check valve
Actuationwith mechanical actuation
Port count5
Mounting interfaceISO 4401-05-04-0-05
Full specifications ↓ Technical catalog · PDF

Description

Z2S10B1-3X/ is a Bosch Rexroth pilot-operated check valve. This pilot-operated check valve provides load-holding isolation in a hydraulic circuit. Hydraulic pilot pressure releases the check function. Its sandwich plate is designed for installation in a vertical valve stack.

The manufacturer lists a maximum operating pressure of 350 bar and a maximum flow of 160 L/min for this execution.

Mounting: Sandwich plate. Seal material: NBR. Spool: B1 → B2. Switching positions: 2.

Full specifications

Technical specifications
Component type Pilot-operated check valve
Maximum operating pressure (bar) 350
Maximum flow (l/min) 160
Port count 5
Mounting interface ISO 4401-05-04-0-05
Mounting type Sandwich plate
Compatible hydraulic fluids HFC / HL / HLP / HLPD / HVLP / HVLPD
Equipment family Z2S
Control function Pilot-operated check valve
Manufacturer Bosch Rexroth
Manufacturer part number R900407434
Spool symbol B1 → B2
Switching position count 2
Nominal size 10
Weight (kg) 2.64
Technical specifications
Actuation with mechanical actuation
Technical specifications
Seal material NBR
