Bosch Rexroth PGF2-2X/011RE01VE4 internal gear pump

PGF2-2X/011RE01VE4, manufacturer material number R900932271, is a Bosch Rexroth PGF series 2X gap-compensated internal gear pump with fixed displacement. The exact printed execution has a clockwise keyed cylindrical shaft with through-drive and a four-hole ISO 3019-2 80B4HW mounting flange.

RE10213 edition 2025-09 specifies 11 cm³/rev geometric displacement and 210 bar maximum operating pressure. The 250 bar peak limit permits no more than 6 seconds per exposure, at most 15% duty cycle and 2 million load cycles. Its ISO 228-1 fluid ports are 3/4 inch BSP suction and 1/2 inch BSP pressure connections; metric flange fasteners are separate.

Speed limits require 1 bar absolute suction pressure at permanent operating pressure or maximum drive power. The reference flow is measured at 1450 rpm and 10 bar with HLP46 at 50 °C and approximately 30 mm²/s. Peak pressure is limited to 6 seconds per exposure, 15% duty cycle and 2 million load cycles. The type key verifies the FKM shaft seal ring; it does not independently identify every seal in the assembly.

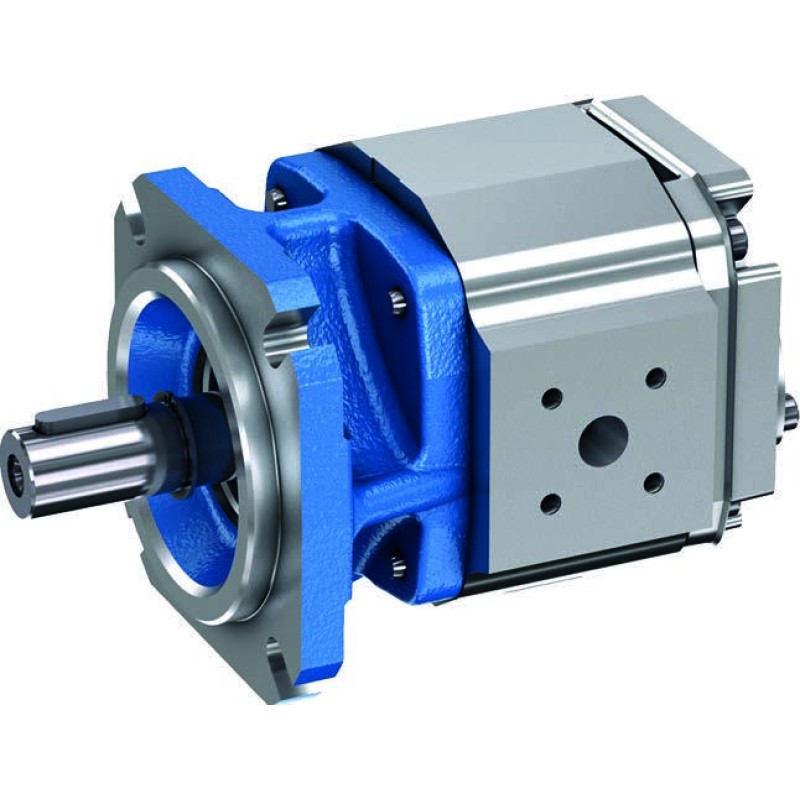

Representative PGF manufacturer series photograph; shaft, flange, size and control details may differ from this execution.
