Bosch Rexroth LC32DR20E7X/ normally-open pressure-reducing logic insert

LC32DR20E7X/, manufacturer material number R900912562, is a Bosch Rexroth size 32 normally-open pressure-reducing logic insert. It is an individual insert for an ISO 7368 receiving cavity and requires a separately selected control cover. It is normally open from B to A and closes as the downstream pressure at A reaches the pilot-controlled level.

The construction is a spool without fine control grooves. Spring code 20 identifies an approximate 2 bar closing pressure class; it does not specify the assembled system pressure setting. The seal code specifies NBR.

The original reference gives a 315 bar insert limit at A and B and a recommended 300 L/min flow limit for this size and construction. These are component data, not a complete-valve rating. The selected cover, pilot, manifold and operating conditions determine the permissible assembly limits. Pressure-flow curves use HLP46 oil at 40 ± 5 °C; drain backpressure and pilot configuration affect the result.

Technical reference: manufacturer-authored RE21050 compiled edition 2003-02, containing retained earlier page revisions. The dated reference identifies applicable component design data and does not establish current stock or an individual assembly setting.

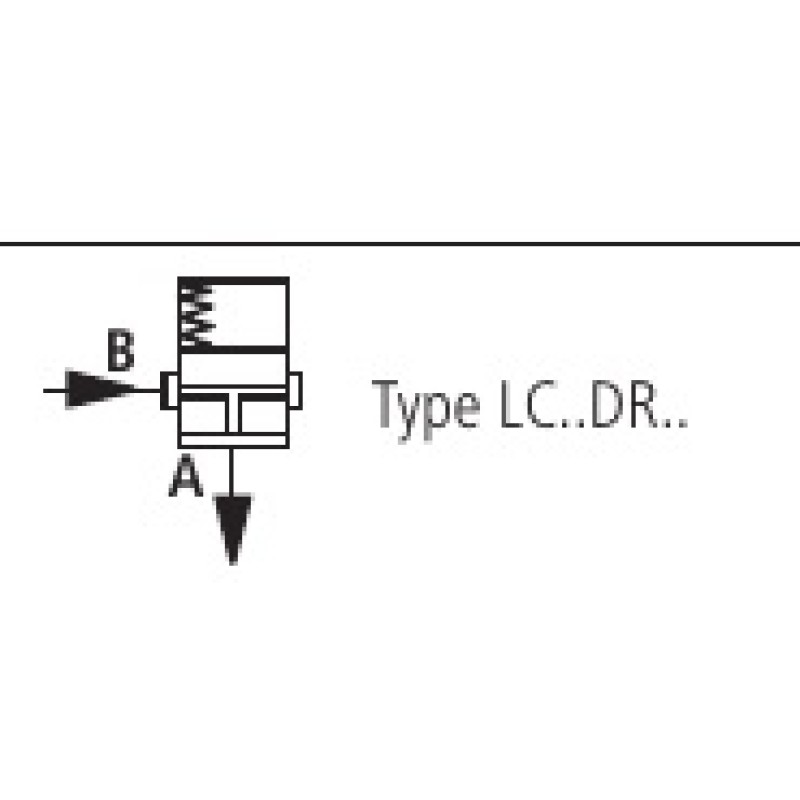

Original manufacturer hydraulic symbol for the normally-open LCDR pressure-reducing insert; schematic, not a product photograph.
