Bosch Rexroth HM20-2X/315-H-K35-N electronic pressure transducer

HM20-2X/315-H-K35-N, manufacturer material number R901466600, is a Bosch Rexroth HM20 series 2X electronic pressure transducer with a 0–315 bar measurement range and a male G1/4 process connection, presented as 1/4 inch BSP. The K35 interface uses an M12 connector. Its H execution provides a three-wire 0.1–10 V analog output; the output load must exceed 2 kΩ.

The supply range is 18–36 V DC; the selected manufacturer reference limits cULus applications to 30 V DC. Overload protection is 630 bar and burst reference is 1260 bar. These are separate from the measurement range, and burst pressure is not an allowable operating pressure. IP65/IP67 requires a suitable mating connector correctly mounted.

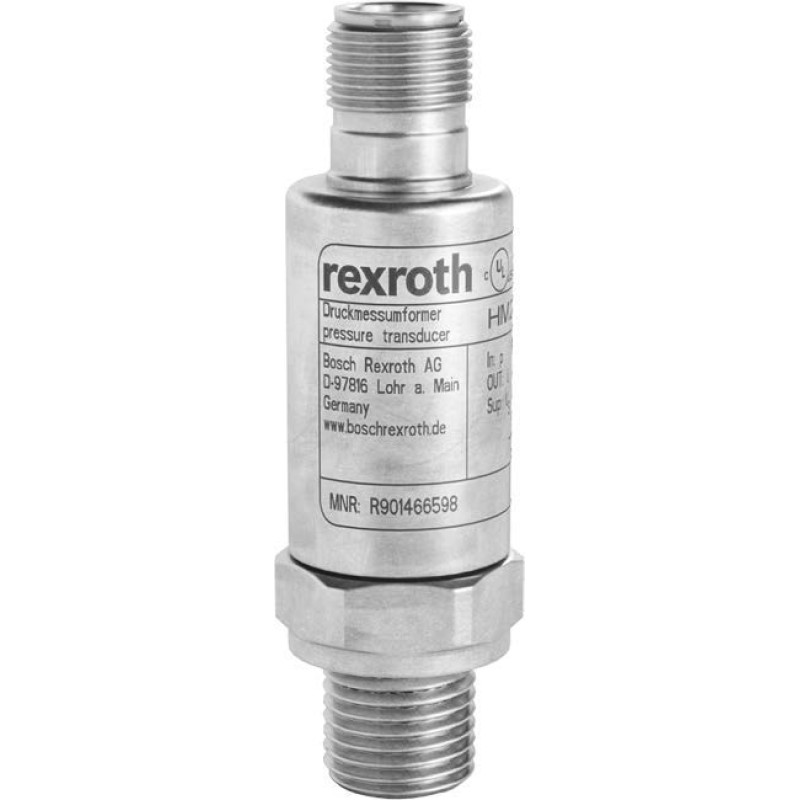

Manufacturer-branded CAD identifies this exact material number and complete model. Numeric geometry is not derived from the CAD file. The manufacturer family photograph is representative.
